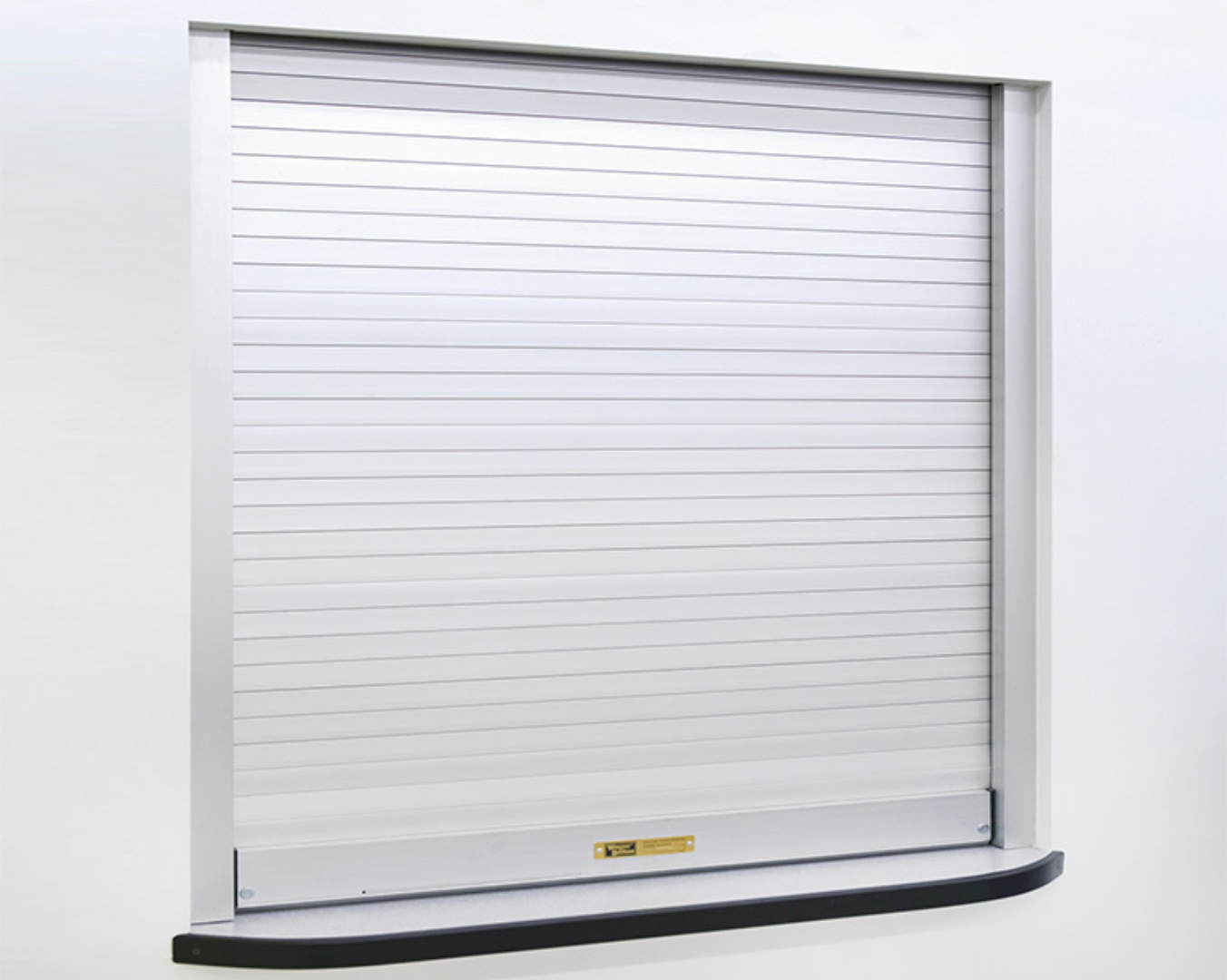

Product Details
| Property | Value |
|---|---|
| Bottom Bar | Single angle galvanized steel bottom bar fitted with a continuous vinyl bumper to protect countertop |
| Curtain | 2” galvanized steel flat slats (#17 profile) 22-gauge steel with alternating endlocks |
| Counterbalance | Steel pipe, of adequate size to restrict a maximum deflection of .033” per linear foot; oil tempered torsion type |
| Colors - Steel Finishes | White, Gray, Beige, Brown |
| Brackets | Steel plates |
| RAL Powder Coat | Approximately 200 powder coat options are available to complement the exterior colors of a building. |
| Guides | Extruded aluminum clear anodized with continuous wool pile strips |
| Hood | 24-gauge galvanized steel square hood |
| Locking | Slide bolts, Thumb turn cylinder (interlock potion on motorized doors) |
| Design Options | Mullion Systems - Facia Slat Profiles No. 17 Secure-Vent® Extruded Aluminum Flat - Slat Options steel stainless steel extruded aluminum perforation (steel or stainless steel only) - Slat Finishes Stainless Steel #4 Aluminum Anodized Finish - Bottom Bar Finish Options Extruded aluminum Tubular Sensing edge: electric or pneumatic - Hood/Bracket Finish Options Stainless steel Aluminum |
| Colors - Anodized Aluminum Finishes | Bronze, Clear |
| Steel Gauge | 20 |
| Ideal Applications | Concession Stand, Accounts Payable Window, Sports Arena, School Food Service, Ticket Booth, Cafeteria |
| Door Type | Counter Shutters |
| Operation | Manual Lift, Crank, Motor, Operator controls |
| Mounting | Face mount, between jambs |
| Model | 500 |
| Max. Width | 20' up to 18' |
| Max Width | 20' up to 18' |
| Max. Height | 7' |
| Max Height | 7' |
| Design Solutions | Counter Cutouts |
| Property | Value |
|---|---|
| Application - Healthcare & Pharmaceutical | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-healthcare-pharmaceutical.pdf |
| Application - Public Government Facility | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-public-government-facility.pdf |
| Application - Retail Automotive | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-retail-automotive.pdf |
| Door Operating Clearance | https://www.wayne-dalton.com/docs/default-source/door-operating-clearance/door-operating-clearance-model-500.pdf |
| Installation Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/counter/500-510-520-owners-manual-273627.pdf |
| Rolling Counter Door Model Slat Profiles | https://www.wayne-dalton.com/docs/default-source/slat-profiles/model-500-counter-slat-profiles.pdf |
| Rolling Door Systems Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-counters/rolling-door-systems-brochure.pdf |
| Model Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-counters/counter-doors-model-500-brochure.pdf |
| Owners Manual | https://www.wayne-dalton.com/docs/default-source/owners-manual/rolling-door-end-user-manual.pd |
Product Resource download links.
