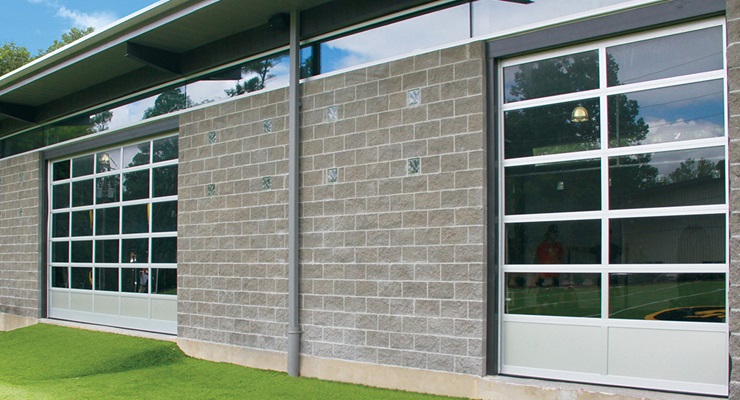

Sectional Aluminum Door - Model 452

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/f474e954-5c30-43a9-80cf-92ec2af0245e/a9f7f48e-8c77-49a8-be4f-046807c69ba9/Model 452.jpg

Category

Sectional Doors

Description


Perfectly suited for applications where maximum light and visibility are desired, the Aluminum Full-View commercial glass doors are engineered for strength and durability while delivering a look that is both modern and elegant. With their sleek contemporary styling, these doors are right at home in a wide variety of settings that range from a five-star restaurant on the seaside to a brewery and many more. Customizable with anodized and powder coated finish options, paint colors, glass choices and solid or glass panels, these commercial glass doors create a modern open look to complement your business. Models 451 and 452 are available in the Central and Eastern regions of the United States.

Features


- 1-3⁄8" thick section with special reinforcing design

- Large glass panels allow maximum light and visibility

- Minimizes air flow with a vinyl seal between the section seals

- 1-Year against defects in materials and workmanship

PropertyValue
WeatherstrippingFlexible bulb-type strip at bottom section
Wind Load*** (optional)Yes***
Colors - Powder Coat FinishesWhite, Bronze, Brown, Black
High Cycle Spring Options25,000, 50,000, 100,000
RAL Powder CoatApproximately 200 powder coat options are available to complement the exterior colors of a building.
Safety FocusedBroken cable devices, Safety Edges, Photo eyes
Ideal ApplicationsDistribution Centers, Auto dealerships, Car washes, Restaurants, Bars, Service Bays
Door TypeSectional Aluminum
Door AssemblyStile and rail assembly of aluminum alloy 6063-T6, 1-3/8" thick stiles and rails
Spring Cycles10,000
R-value* (optional)3.97
TrackProvide track as recommended by the manufacturer
StilesSingle end stiles are 3-1/2" wide, center stile 3" wide, minimum wall thickness 0.062"
RailsTop, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2" wide with a minimum wall thickness of 0.062"
Air infiltration (IECC)0.4 cfm/ft2
OperationElectric operator, chain hoist, or pull rope
Max. Width22’ 2”
Max. Height14'1"
LockingInterior mounted slide lock
Colors - Anodized Aluminum FinishesClear (Standard), Bronze, Black
