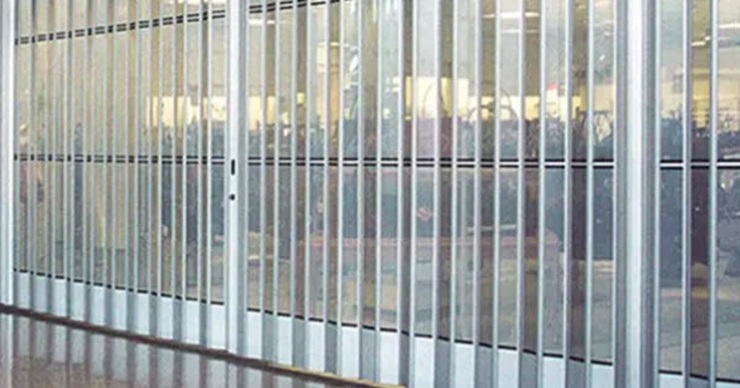

| Ideal Applications | Malls, Airports, Parking Garage, Concourses, Retail, Food Courts, Sports complex, Schools |
| Egress Option | Yes |
| Trolley Assembly | 1 1/8” (29 mm) Height: 1 5/8” (41 mm) Width: 1 3/8” (35 mm) |
| Standard Line Grille Patterns – Full-closure - Perforated | Curtain: 7” (178 mm) standard width, 0.05" (1.27 mm) perforated aluminum panels with 3 /16" (5 mm) dia. Holes on ¼" (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 51% of 6 1/8" (156 mm) viewable area. |
| Radii | 90-14, 120-10, 135-10, 150-10 |
| EZ Grille Patterns - EZ Clear – Full-closure | Curtain: 4” (102 mm) slim width, 1/16" (1 mm) thick fire-retardant polycarbonate that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 100% of 3-1/2" (89 mm) viewable area. |
| EZ Grille Patterns - EZ Guard – Full-closure | Curtain: 4” (102 mm) standard width, 0.07" (1.78 mm) thick solid aluminum that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 0% of 3-1/2" (89 mm) viewable area. |
| Standard Line Grille Patterns – Full-closure - Glass | Curtain: 7” (178 mm) standard width, 1/8" (3 mm) thick tempered glass that fits into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 100% of 5 3/8" (137 mm) viewable area. |
| Standard Line Grille Patterns – Full-closure - Polycarbonate | Curtain: 7” (178 mm) standard width, 1 /16" (1 mm) thick fire retardant polycarbonate that fits into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 100% of 6 1/8" (156 mm) viewable area. |
| Standard Line Grille Patterns – Full-closure - Solid Aluminum | Curtain: 7” (178 mm) standard width, 0.078" (2 mm) thick solid aluminum that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 0% of 6 1/8" (156 mm) viewable area. |
| Track Detail | Top-mounted |
| Post Options - Intermediate post | Bottom shoot bolt - Concealed cylinder-operated shoot bolt accessible from one side only |
| Finish | Clear Anodized |
| EZ Grille Patterns - EZ Vent – Full-closure | Curtain: 4” (102 mm) standard width, 0.05" (1.27 mm) perforated aluminum panels with 3 /16" (5 mm) dia. holes on 1/4" (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 100% of 3-1/2" (89 mm) viewable area. |
| EZ Grille Patterns - EZ Grille – Open-air | Curtain: 4" (102mm) wide with 2 inch (51mm) high bottom and top plates, truss-like aluminum. Panels connected with 1/8 x 5/8 x 4-1/4 inch aluminum links vertically spaced 15 inches (381 mm) apart onto 5/16 inch (8 mm) aluminum horizontal rods spaced 3-1/2 inches (89 mm) on center and covered by 1/2 inch (13 mm) aluminum tubes. Curtain secured to pocket, not end post required. Straight pattern. - Visibility: 97% of 3-1/2" (89 mm) viewable area. |
| Door Type | Grilles |
| Slim Line Grille Patterns – Full-closure - Solid Aluminum | Curtain: 4” (102 mm) standard width, 0.07" (1.78 mm) thick solid aluminum that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 0% of 3 ½" (89 mm) viewable area. |
| Slim Line Grille Patterns – Full-closure - Polycarbonate | Curtain: 4” (102 mm) slim width, 1/16" (1 mm) thick fire-retardant polycarbonate that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 100% of 3-1/2" (89 mm) viewable area. |
| Slim Line Grille Patterns – Full-closure - Perforated | Curtain: 4” (102 mm) standard width, 0.05" (1.27 mm) perforated aluminum panels with 3 /16" (5 mm) dia. holes on 1/4" (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. - Visibility: 100% of 3-1/2" (89 mm) viewable area. |
| Brick or Straight Grille Patterns – Open-air - SWBB - Brick | Space between tubes 2 15/16" (73.5 mm) - Full panel width 7" (178 mm) Top plate 4" (102 mm) - Top spacer tube size varies from curtain pattern to accommodate specific height - Spacer plate 1” (25.4 mm) - Spacer tube ½” (12.7 mm) x 12” (305 mm) Bottom plate 4” (102 mm) - Max Width: Unlimited - Max Height: 168" (4267 mm) |
| Posts | Lead Post, Intermediate Post and Trailing End Post |
| Post Options - Trailing end post | Traveling; fixed; hook lock and wall jamb; top and bottom shoot bolts; carrier - Attached 10’ max. (3048 mm) protection plate self-locking into a steel V-Stop |
| Post Options - Lead Post | Hook lock and wall channel; bi-part; top and bottom shoot bolts - Concealed cylinder-operated hook lock accessible from interior and exterior |
| Pocket | Available in a wide variety of sizes |
| Operation | Manual |
| Max. Width | No limit |
| Max. Height | 12’ |
| Cylinders | 1" mortise |
| Curves | 90°: Standard body: 14” (356 mm) radius; Slim body 10” (254 mm) radius 120°, 135° and 150°: Standard and Slim body: 10” (254 mm) radius Standard body: 10” (254 mm) radius |
| Curtain Inserts | Aluminum, Polycarbonate, Glass, Perforated Steel |
| Curtain Frame | Truss-like aluminum top and bottom plates; 1/8” (3 mm) thick |
