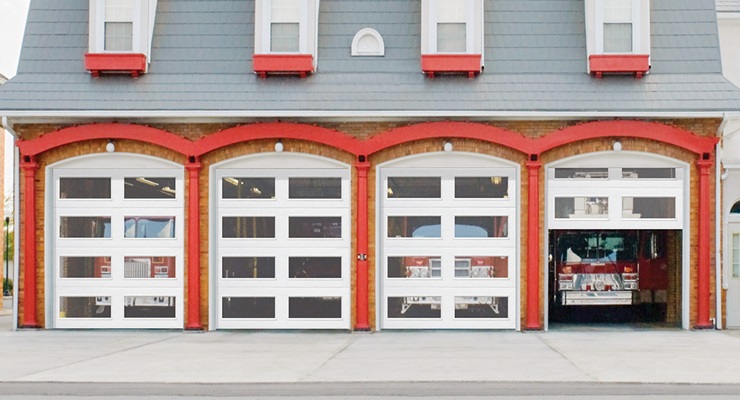

Product Details
| Property | Value |
|---|---|
| U-factor | 0.15 |
| Wind Load (optional) | No |
| Lite Options | Vision, Contemporary, Colonial, Ranch, Sonoma, , Stucco-Embossed Pinstripe |
| Operation | Chain hoist operation, Motor operation |
| Color - Stucco Options | White Stucco, Almond Stucco, Taupe Stucco, Brown Stucco, Black Stucco |
| Design Options | Jamb seal, Mullions, 3” Track |
| Safety Focused | Cable failure device, Sensing edges, Photo eyes |
| Thermal Break | Yes |
| Spring Cycle | 10,000 |
| Sound Transmission (STC- ASTM E 413) | Class 20 |
| Sectional Thickness | 1.5" 3-layer |
| Door Type | Insulated Sectional Steel |
| Max. Height | 20'1" |
| Max. Width | 20'2" |
| Impact Panel Option | The Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21" and 24" sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime, costly repairs and has impact-resistant composite skin that surrounds an expanding polystyrene core. |
| Ideal Applications | Manufacturing Plants, Production Facilities, Loading Docks, Storage Facilities, Commercial Buildings, Industrial Facilities, Drive-Thru Bays, Truck Bays, Vehicular Storage |
| High Cycle Spring Options | 25,000, 50,000, 100,000 |
| R-value | 12.12 |
| Exterior Surface | Stucco Embossed / Flush |
| Air infiltration (IECC) | 0.23 cfm/ft² at 25mph (4.20 m3/hr/m2 at 24 kmph) |
| Property | Value |
|---|---|
| Installation Instructions ThermoMark™ Wind Load Model | https://www.wayne-dalton.com/docs/default-source/install/comm/sectional/5150-5155-5200-5255-starndard-lift-windload-353363.pdf |
| Quick Start Guide - Wind Load | https://www.wayne-dalton.com/docs/default-source/quick-start-guides/comm-insulated-steel/thermomark-5150-5155-5200-5255-windload-qsg-353364.pdf |
| Sectional Door Systems Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/commercial/comm-sectional/sectional-door-systems-brochure.pdf |
| Thermospan® Insulated Door Operator System Warranty | https://www.wayne-dalton.com/docs/default-source/warranty/comm-rolling/thermospan-insulated-sectional-steel-door-warranty.pdf |
| Application - Cold Storage - Food & Beverage | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-cold-storage-food-beverage-applications-brochure.pdf |
| Door Panel Section Guide | https://www.wayne-dalton.com/docs/default-source/panel-section-guide/door-panel-sectionguide-model-5155-5255.pdf |
| Operating Clearance Commercial Sectional | https://www.wayne-dalton.com/docs/default-source/door-operating-clearance/commercial-sectional-general-operating-clearances.pdf |
| Track Selection Guide Sectional Steel Doors | https://www.wayne-dalton.com/docs/default-source/panel-section-guide/track-selection-guide-sectional-steel-doors.pdf |
| Sectional Steel Door Impact Section Option Flyer | https://www.wayne-dalton.com/docs/default-source/brochure/comm-sectional/sectional-steel-door-impact-section-option-flyer.pdf |
| Cable Keepers Installation Insert | https://www.wayne-dalton.com/docs/default-source/instuction-inserts/cable-keepers/cable-keeper-insert.pdf |
| Quick Start Guide | https://www.wayne-dalton.com/docs/default-source/quick-start-guides/comm-insulated-steel/sectional-door-thermomark-series-torsion-standard-lift-qsg-353362.pdf |
| Model Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/commercial/sectional-insulated/sectional-steel-door-model-5155-5255-brochure.pdf?sfvrsn=a3495308_8 |
| Installation Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/sectional/5150-5155-5200-5255-standard-lift-353361.pdf |
| Installation Insert - Commercial Sectional Low Headroom | https://www.wayne-dalton.com/docs/default-source/instuction-inserts/commercial-sectional-low-headroom-installation-insert-360564-insert.pdf |
