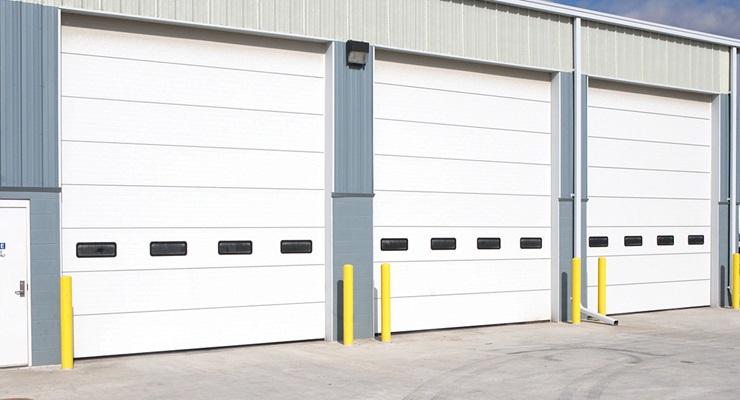

Non-Insulated Sectional Steel Doors - Model 216

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/e3764c93-8cd4-442c-a936-ce8434c92311/97ea6314-746e-4503-97c2-b6523d8314d9/Model 216.jpg

Category

Sectional Doors

Description


Model 216 and Model 220 commercial sectional doors are designed for strength and durability. Engineered to perform and stand the test of time, both provide your building with added safety and security. Model 216 Sectional Steel door features heavy-duty 16-gauge construction built to withstand severe weather, harsh use, and exposure to security hazards. Model 220 Sectional Steel Door provides high impact resistance and industrial strength on a wide variety of standard sizes. For even more strength, we’ve reinforced the bottom section of these doors with a flexible bulb-shaped vinyl astragal held in place by a continuous roll-formed steel retainer. These commercial sectional doors meet the needs of rugged applications and are ideal when impact resistance is critical.

Features


- Ribbed exterior surface contributes to long service life and provides superior strength and rigidity

- Industrial-duty hot-dipped galvanized steel sections are reinforced with heavy-duty vertical stiles that make hinge installation quick and secure

- Flush profile with shiplap joints provides a lower air infiltration and can help reduce energy costs

- 1-Year against defects in materials and workmanship

PropertyValue
Max. Width28'2"
Max. Height18'1"
Steel Gauge16
Joint ProfileShiplap
Spring Cycles10,000
R-value* (optional)7.64
U-value* (optional)0.13
OperationChain hoist operation, Motor operation
Design Options3” Track Solid shafts Special track designs Mullions Perimeter weather seal Polystyrene Insulation
ColorsWhite Smooth
Safety FocusedBroken cable devices, Safety Edges, Photo eyes
Exterior SurfaceSmooth, Ribbed
Design SolutionsPass Door
Impact Panel OptionThe Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21" and 24" sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime, costly repairs and has impact-resistant composite skin that surrounds an expanding polystyrene core.
Ideal ApplicationsManufacturing Plants, Production Facilities, Storage Facilities, Industrial Facilities, Agricultural Facilities, Commercial Buildings
High Cycle Spring Options25,000, 50,000, 100,000
Door TypeNon-Insulated Steel
Lite OptionsVision, Full View

Product Resource download links.

Warranty

Model Specifications - DOC

Model Specifications - PDF

CAD Sectional Steel Door

Full Line Specs - DOC

Revit

Full Line Specs - PDF
