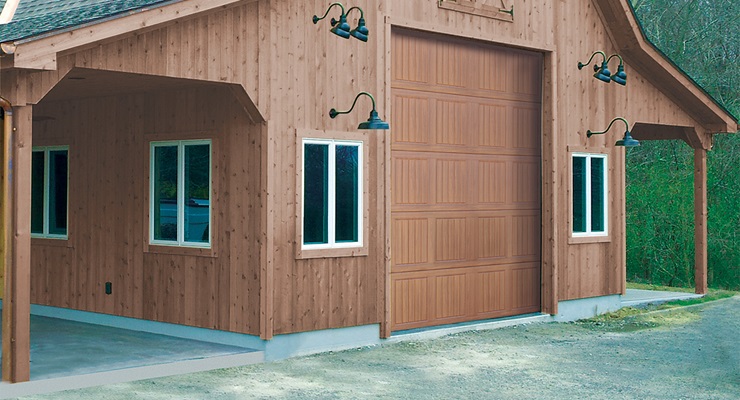

Product Details
| Property | Value |
|---|---|
| Impact Panel Option | The Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21" and 24" sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime, costly repairs and has impact-resistant composite skin that surrounds an expanding polystyrene core. |
| Ideal Applications | Manufacturing Plants, Production Facilities, Loading Docks, Storage Facilities, Commercial Buildings, Industrial Facilities, Drive-Thru Bays, Truck Bays, Vehicular Storage |
| Exterior Surface | Embossed Wood Grain or Stucco Embossed / Pinstripe |
| Door Type | Insulated Sectional Steel |
| Design Options | Jamb seal, Mullions, 3” Track |
| Air infiltration (IECC) | 0.23 cfm/ft2at 15 mph |
| Spring Cycle | 10,000 |
| Sound Transmission (STC- ASTM E 413) | Class 20 |
| Sectional Thickness | 1 7/8" 3-layer" |
| U-factor | 0.12 |
| Thermal Break | Yes |
| Wind Load (optional) | Yes*** |
| Color - Paint Options | White Smooth, Almond, Taupe, Terra Bronze, Brown, Black |
| Color - Stucco Options | White Stucco, Almond Stucco, Taupe Stucco, Brown Stucco, Black Stucco |
| High Cycle Spring Options | 25,000, 50,000, 100,000 |
| Lite Options | Vision, Contemporary, Colonial, Ranch, Sonoma, Stucco-Embossed Pinstripe |
| Operation | Chain hoist operation, Motor operation |
| Safety Focused | Cable failure device, Sensing edges, Photo eyes |
| R-value | 16.22 |
| Max. Width | 26'2" |
| Max. Height | 20'1" |
| Property | Value |
|---|---|
| Application - Cold Storage - Food & Beverage | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-cold-storage-food-beverage-applications-brochure.pdf |
| Cable Keepers Installation Insert | https://www.wayne-dalton.com/docs/default-source/instuction-inserts/cable-keepers/cable-keeper-insert.pdf |
| Door Panel Section Guide | https://www.wayne-dalton.com/docs/default-source/panel-section-guide/door-panel-sectionguide-model-5150-5200.pdf |
| Quick Start Guide | https://www.wayne-dalton.com/docs/default-source/quick-start-guides/comm-insulated-steel/sectional-door-thermomark-series-torsion-standard-lift-qsg-353362.pdf |
| Sectional Door Systems Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/commercial/comm-sectional/sectional-door-systems-brochure.pdf |
| Sectional Steel Door Impact Section Option Flyer | https://www.wayne-dalton.com/docs/default-source/brochure/comm-sectional/sectional-steel-door-impact-section-option-flyer.pdf |
| Thermospan® Insulated Door Operator System Warranty | https://www.wayne-dalton.com/docs/default-source/warranty/comm-rolling/thermospan-insulated-sectional-steel-door-warranty.pdf |
| Track Selection Guide Sectional Steel Doors | https://www.wayne-dalton.com/docs/default-source/panel-section-guide/track-selection-guide-sectional-steel-doors.pdf |
| Installation Insert - Commercial Sectional Low Headroom | https://www.wayne-dalton.com/docs/default-source/instuction-inserts/commercial-sectional-low-headroom-installation-insert-360564-insert.pdf |
| Installation Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/sectional/5150-5155-5200-5255-standard-lift-353361.pdf |
| Installation Instructions ThermoMark™ Wind Load Model | https://www.wayne-dalton.com/docs/default-source/install/comm/sectional/5150-5155-5200-5255-starndard-lift-windload-353363.pdf |
| Model Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/commercial/sectional-insulated/sectional-steel-door-model-5150-5200-brochure.pdf |
| Quick Start Guide - Wind Load | https://www.wayne-dalton.com/docs/default-source/quick-start-guides/comm-insulated-steel/thermomark-5150-5155-5200-5255-windload-qsg-353364.pdf |
| Operating Clearance Commercial Sectional | https://www.wayne-dalton.com/docs/default-source/door-operating-clearance/commercial-sectional-general-operating-clearances.pdf |
