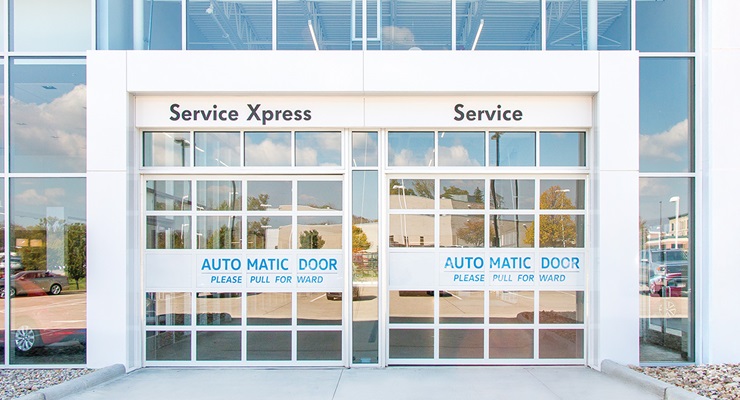

Sectional Aluminum Door - Model 451

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/d955339e-7362-43b7-9939-9c75977b3ce3/af3c5f41-6b51-482a-b2e1-8d6560b99764/Model 451.jpg

Category

Sectional Doors

Description


Perfectly suited for applications where maximum light and visibility are desired, the Aluminum Full-View commercial glass doors are engineered for strength and durability while delivering a look that is both modern and elegant. With their sleek contemporary styling, these doors are right at home in a wide variety of settings that range from a five-star restaurant on the seaside to a brewery and many more. Customizable with anodized and powder coated finish options, paint colors, glass choices and solid or glass panels, these commercial glass doors create a modern open look to complement your business. Models 451 and 452 are available in the Central and Eastern regions of the United States.

Features


- 1-3⁄8" thick section with special reinforcing design

- Large glass panels allow maximum light and visibility

- Minimizes air flow with a vinyl seal between the section seals

- 1-Year against defects in materials and workmanship

PropertyValue
WeatherstrippingFlexible bulb-type strip at bottom section
Wind Load*** (optional)Yes***
High Cycle Spring Options25,000, 50,000, 100,000
Colors - Anodized Aluminum FinishesClear (Standard), Bronze, Black
Colors - Powder Coat FinishesWhite, Bronze, Brown, Black
Solid or Glass Panel OptionsSolid aluminum panels may be specified in lieu of glass, Polycarbonate, various glass thicknesses, and custom glazing are also available
Weather Stripping OptionsJamb seals, Header seals
LockingInterior mounted slide lock
Door AssemblyStile and rail assembly of aluminum alloy 6063-T6, 1-3/8" thick stiles and rails
TrackProvide track as recommended by the manufacturer
StilesSingle end stiles are 3-1/2" wide, center stile 3" wide, minimum wall thickness 0.062"
Spring Cycles10,000
Door TypeSectional Aluminum
Ideal ApplicationsDistribution Centers, Auto dealerships, Car washes, Restaurants, Bars, Service Bays
Max. Width22’ 2”
Max. Height16'1"
OperationElectric operator, chain hoist, or pull rope
Air infiltration (IECC)0.4 cfm/ft2
Safety FocusedBroken cable devices, Safety Edges, Photo eyes
R-value* (optional)No
RAL Powder CoatApproximately 200 powder coat options are available to complement the exterior colors of a building.
RailsTop, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2" wide with a minimum wall thickness of 0.062"
