High Speed Fabric Doors Model 882

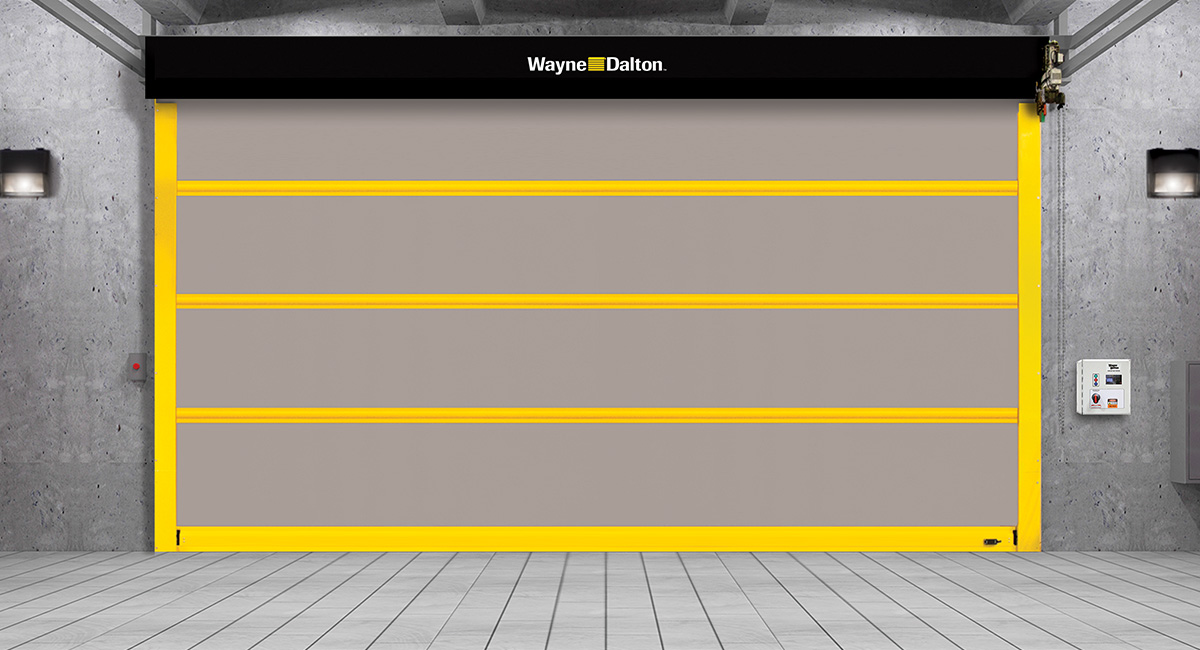

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/cce7a8a7-7311-42c4-afbd-223ebf822c02/33cb9905-9df1-4667-82ca-391cdabcf394/882-1.jpg

Description

Model 882 ADV-Xtreme strutted interior high speed fabric door is designed to be low-maintenance and is a durable door that is built to last. This high-performance door is for interior or exterior applications featuring breakaway impact detection and push button self-repair, along with plug and play wiring. Model 882 ADV-Xtreme’s strutted design allows for quick section replacement while reducing curtain deflection under pressure and can withstand a pressure of up to 4.0 psf.

Features

- High Performance, Low Maintenance Design - The strutted design allows for quick section replacement while reducing curtain deflection under pressure; Springless design requires minimal interruption for maintenance; Direct-mounted gear drive minimizes wear and tear; Variable frequency drive eliminates sudden jolts from door start and stop operation; Patent-pending breakaway system design with impact detection and push button self-repair; For exterior use with optional fabric upgrade

- Field Repairable - Hinged guides provide easy access for maintenance

- Installer Friendly - Pre-assembled sub-assemblies for easier installation; Plug-and-play wiring reduces the need for a licensed electrician

Property	Value
Applications Chart	https://www.wayne-dalton.com/docs/default-source/charts/adv-x-high-speed-doors-applications-chart.pdf
Model Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-door-882-sales-sheet.pdf
ADV-Xtreme High Speed Doors Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/adv-xtreme-high-speed-doors-brochure.pdf
ADV-Xtreme High Speed Doors 880-887 Warranty	https://www.wayne-dalton.com/docs/default-source/warranty/comm-rolling/adv-x-high-speed-doors-warrant-880-887y.pdf
ADV-Xtreme High Speed Doors Guide Options	https://www.wayne-dalton.com/docs/default-source/panel-section-guide/adv-x-high-speed-doors-guide-options.pdf
ADV-Xtreme High Speed Doors Comparison Chart	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-doors-comparison-chart.pdf
Owners Manual	https://www.wayne-dalton.com/docs/default-source/owners-manual/high-speed-door-end-user-manual-500329.pdf
Programmable Lighting Package Flyer	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-doors-programmable-lighting-package-flyer.pdf
ADV-Xtreme High Speed Door 882 Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-door-882-sales-sheet.pdf
ADV-Xtreme High Speed Door Owners Manual	https://www.wayne-dalton.com/docs/default-source/owners-manual/high-speed-door-end-user-manual-500329.pdf
Seywave Antenna Retrofit 500379-INSERT	https://www.wayne-dalton.com/docs/default-source/instuction-inserts/installation-instructions-seywave-antenna-retrofit-500379-insert.pdf
Light Curtain Instructions	https://www.wayne-dalton.com/docs/default-source/install/comm/service/adv-x-series-light-curtain-instructions.pdf
Installation Instructions	https://www.wayne-dalton.com/docs/default-source/install/comm/high-speed/882-installation-820723.pdf
High Speed Doors Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/adv-xtreme-high-speed-doors-brochure.pdf

Property	Value
Breakaway Self-Reset	Yes
Door Type	Fabric Doors
Max Width	15'
Model	882
Operation	Direct drive motor and gearbox system with field changeable universal handing and door stop safety device
Programmable LED Lighting Package	3' tall light bar with red, yellow, and green lights
Safety Features	Obstruction Safety Detection and Reversing Sensing Edge
Signal Device Options	Red/green LED warning light; Horn/strobe combination; Rotating warning light
Supply Voltages	120V AC 1 PH, 208V AC 1 PH, 220V AC 1 PH, 208V AC 3 PH, 230V AC 3 PH, 460V AC 3 PH, 575V AC 3 PH
Warranty Information	5-year Limited Warranty on drive motor and gearbox ; 1-year Limited Warranty on all other components
Wind Load	up to 4.0 psf
Control Panel	Variable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed
Hood	Protection from debris and moisture
Color - Internal Applications	White, Gray, Blue, Red, Black, Yellow, Orange
Colors - Exterior Applications	Red, Blue, Gray, Orange
RAL Powder Coat	Approximately 200 powder coat options are available to complement the exterior colors of a building.
Max Height	16'
Actuation Options	Push button, Motion detector, Radio control, Key switch, Pull switch, Loop detector, Treadle switch
Curtain Material	2 layers of PVC-coated polyester with 1 layer of polyester weave
FDA Compliant Applications Colors	Royal Blue, White
Max Opening Speed	up to 65” per second
Max Closing Speed	up to 40” per second
