Product Details
| Property | Value |
|---|---|
| Signal Device Options | Red/green LED warning light, Horn/strobe combination, Rotating warning light |
| Supply Voltages | 120V AC 1 PH, 208V AC 1 PH, 220V AC 1 PH, 208V AC 3 PH, 230V AC 3 PH, 460V AC 3 PH, 575V AC 3 PH |
| Curtain Color Options | Red, Blue, Gray White |
| Bottom seal | Flexible bottom edge with detachable seal |
| Door Type | Fabric Doors |
| Wind Load | up to 3.0 psf |
| RAL Powder Coat | Approximately 200 powder coat options are available to complement the exterior colors of a building. |
| Openings | Interior / Interior |
| Actuation Options | Push button, Motion detector, Radio control, Key switch, Pull switch Loop detector, Treadle switch |
| Breakaway Self-Reset | Yes |
| Control Panel | ariable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed |
| Curtain Lock | Yes |
| Curtain Material | 2 layers of light PVC-coated polyester with 1 layer of polyester weave |
| Max Closing Speed | up to 40” per second |
| Max Opening Speed | up to 70” per second |
| Max Width | 12' |
| Operation | Direct drive motor and gearbox system with field changeable universal handing and door stop safety device |
| Programmable LED Lighting Package | 3' tall light bar with red, yellow, and green lights |

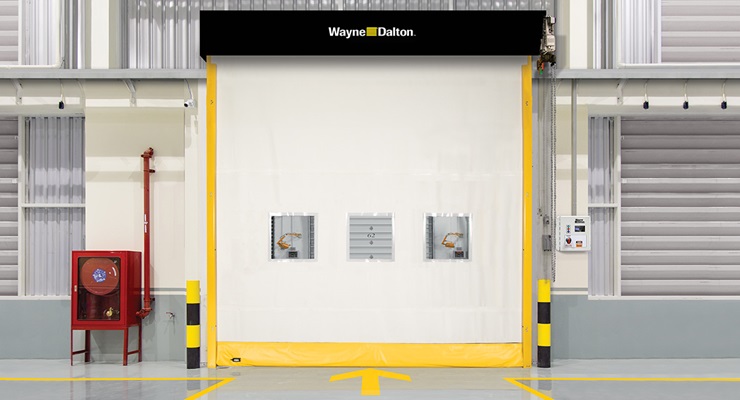

| Model | 880 |
| Max Height | 12' |
| Warranty Information | 5-Year Limited Warranty on drive motor and gearbox , 1-Year Limited on all other components |
| Spring Cycles | Yes |
| Guides/Brackets/Struts/Bottom Bar Colors | Yellow |
| Property | Value |
|---|---|
| Owners Manual | https://www.wayne-dalton.com/docs/default-source/owners-manual/high-speed-door-end-user-manual-500329.pdf |
| ADV-Xtreme High Speed Doors Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/adv-xtreme-high-speed-doors-brochure.pdf |
| ADV-Xtreme High Speed Door Owners Manual | https://www.wayne-dalton.com/docs/default-source/owners-manual/high-speed-door-end-user-manual-500329.pdf |
| ADV-Xtreme High Speed Doors Comparison Chart | https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-doors-comparison-chart.pdf |
| ADV-Xtreme High Speed Doors Guide Options | https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-doors-comparison-chart.pdf |
| Seywave Antenna Retrofit 500379-INSERT | https://www.wayne-dalton.com/docs/default-source/instuction-inserts/installation-instructions-seywave-antenna-retrofit-500379-insert.pdf |
| Applications Chart | https://www.wayne-dalton.com/docs/default-source/charts/adv-x-high-speed-doors-applications-chart.pdf |
| ADV-Xtreme High Speed Doors 880-887 Warranty | https://www.wayne-dalton.com/docs/default-source/warranty/comm-rolling/adv-x-high-speed-doors-warrant-880-887y.pdf |
| Model Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/880-high-speed-door-sales-sheet.pdf |
| High Speed Doors Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/adv-xtreme-high-speed-doors-brochure.pdf |
| Installation Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/high-speed/884-installation-820725.pdf |
| Light Curtain Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/service/adv-x-series-light-curtain-instructions.pdf |
| Programmable Lighting Package Flyer | https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-doors-programmable-lighting-package-flyer.pdf |
