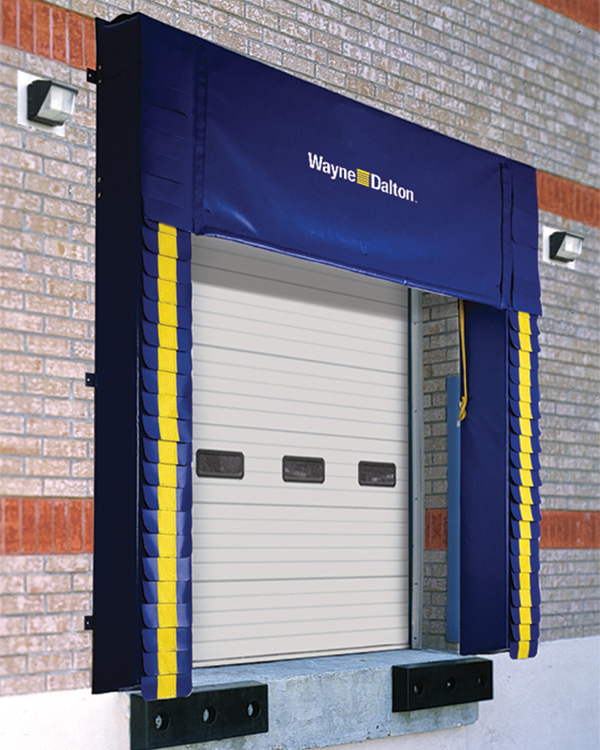

Adjustable Curtain Seal

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/c278cb3b-44a5-4a36-b32a-292489a07994/dd1bfd67-bf05-4b7a-84aa-5063ae8c0743/adjustable-curtain-dock-seal-sectional-windload.jpg

Category

Dock Equipment

Description


Our seal with an adjustable top curtain is designed to accommodate varying trailer heights while providing superior weather protection. Save on heating/cooling costs with this innovative solution that closes gaps and helps protect against harsh weather.

Features


- Available with up to a 60” drop

- Full width steel tube that prevents curtain sagging

- With a rope and pulley assembly, the curtain adjusts to different trailer heights to help aid thermal efficiency. The curtain can be ordered with overlapping low temperature PVC strips for cold applications

- The fabric is double stitched with high strength polyester thread that has been UV treated for long term durability

- The columns have premium grade foam with full compression and recovery properties in temperatures as lows as -40°F

- The fire resistant foam is continuously bonded to the backing with a non-flammable adhesive with elastic properties for long life

- Plated vent openings drain moisture and promote air circulation for compression in the vertical columns

- Made of fire resistant fabric and available in multiple weights including a premium 40 oz fabric that has 6 times more abrasion resistance. All fabrics are treated with UV protection to help prevent fading

- Optional column wear pleats provide additional tearing and abrasion protection. Heavy duty 66 oz. wear pleats on the top and bottom corners also available

- A bottom seal pad can provide added heating and cooling savings by creating a 4 sided seal all around the opening (top pad, bottom pad, two side pads)

PropertyValue
40 oz Fabric Color - PremiumBlack - Option
22 oz Fabric ColorBlack, Blue, Gray, Green, Brown - Optional
Curtain - Full Width Steel TubeStandard
Column Height 10' - Standard; 9'-6" - 12' - Optio
FrameTreated Lumber - Standard; Galvanized Steel - Optional
Bottom Seal Pad4' or 8' Long - Optional
Draft ControlTwo bottom draft flaps - Standard
Guide Stripes24" High - Standard; Full Height - Optional
Heavy Duty Wear Pleats66 oz Top and Bottom Corner Pleats, 4" exposure (Black, Blue, Orange)
MountingGalvanized Mounting Hardware - Standard
Scuff Guards(40 oz Regular, Black) - 48" tall additional layer of fabric inside column - Optional
Security Seal4' or 8' High - Optional
Wear Pleats4"/8"/16" exposure (same weight/color available as above) - Optional
40 oz Fabric Color - RegularBlack, Blue, Gray, Green, Red, Brown - Optional
Split Curtain - Velcro (adjustable or fixed)Optional
Double Layer FabricOptional
