Model 464

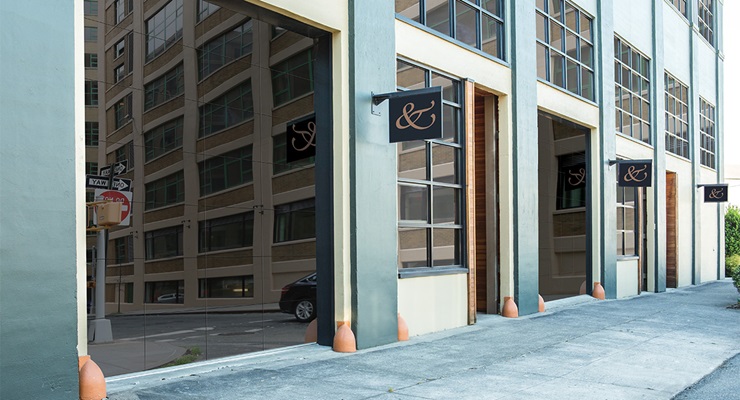

Model 464 frameless glass door is designed to seamlessly integrate indoor and outdoor spaces. Frameless glass panels are mounted on a rugged aluminum structure that is designed for long life. Available in five different glass finishes and five aluminum structure finishes, the aluminum full-view door can go along with the aesthetics of the building. Practically weather-resistant and low maintenance, Model 464 is ideal for commercial applications where you require an ultimate sleek and modern frameless glass door.

Sectional Aluminum Door - Model 464

Memorial LINAC

Oglethorpe - Georgia Classic Collection

Oglethrope with Ivory Mortar

Oglethrope Material Images

CherokeeBrick_GeorgiaClassic_Oglethrope

Oglethorpe is a staple in our Classic Collection. All of our brick is sure to enhance any building project. In addition to being versatile our Classic Collection provide memorable results, utilizing their unique range of textures and characteristics to make your structure truly one of a kind because our brick comes in a wide array of colors including reds, browns, earth-tones, and pinks. Another key point is all of our brick are available in queen, modular, engineer, thin brick and even custom sizes.  Call us today to discuss your building or home project and let us help you find the perfect brick.

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Markets

Volts

Product Category

Tubing Type

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Wayne Dalton offers a complete line of doors for commercial and industrial door systems as well as dock equipment for virtually any application.

For architects, contractors, or building owner/manager, Wayne Dalton ensures to provide you with proper tools and solutions to meet your home or business needs with SPECS, drawings, and documents all in one place.

Technical Documents Resource Center

Find links to detailed product documents including, specification sheets, an extensive library of Commercial  catalogs, CAD Drawing Library, and BIM Object Library

Select Wayne Dalton products and add them to a Submittal here. Easily navigate between Wayne Dalton’s available products to build your submittal

Property	Value
High Cycle Spring Options	25,000, 50,000, 100,000
Glass Options	Opaque White, Opaque Black, Mirrored Gray, Mirrored Bronze, Translucent Black
Air infiltration (IECC)	0.4 cfm/ft2
Stiles	End stiles are 3 ½" wide, center stile 3" wide, minimum wall thickness 0.062"
Spring Cycles	10,000
Track	Provide track as recommended by manufacturer to suit loading required and clearances available
Colors - Anodized Aluminum Finishes	Bronze, Black
Colors - Powder Coat Finishes	White, Bronze, Black
Weather Stripping Options	Jamb seals, Header seals
Door Type	Sectional Aluminum
Ideal Applications	Restaurants, Auto dealerships, Business interior room divider, Bars
Max. Width	18'2"
Max. Height	14'1"
Exterior Surface	Smooth, Ribbed
Door Assembly	Stile and rail assembly of aluminum alloy 6063-T6, 1 ³/₈" thick stiles and rails, joined with self-tapping screws
Rails	Top, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2" wide with a minimum wall thickness of 0.062"
Powder Coat Track Options	White, Black

Property	Value
Sectional Door Systems Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/commercial/comm-sectional/sectional-door-systems-brochure.pdf
Model Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-alum/commercial-aluminum-full-view-464-brochure.pdf
Quick Start Guide	https://www.wayne-dalton.com/docs/default-source/quick-start-guides/comm-alum/aluminum-door-qsg-8450-464-451-452-torsion-standard-lift-352195.pdf
Installation Insert - Commercial Sectional Low Headroom	https://www.wayne-dalton.com/docs/default-source/instuction-inserts/commercial-sectional-low-headroom-installation-insert-360564-insert.pdf
Installation Instructions	https://www.wayne-dalton.com/docs/default-source/install/comm/alum/451-452-464-installation-0352194.pdf
Vertical Lift Tracks Supplement	https://www.wayne-dalton.com/docs/default-source/panel-section-guide/vertical-lift-tracks-supplement-288955.pdf
Operating Clearance Commercial Sectional	https://www.wayne-dalton.com/docs/default-source/door-operating-clearance/commercial-sectional-general-operating-clearances.pdf
Door Panel Section Guide	https://www.wayne-dalton.com/docs/default-source/panel-section-guide/door-panel-section-guide-aluminum-464.pdf

Product Details

Sectional Aluminum Door - Model 464
