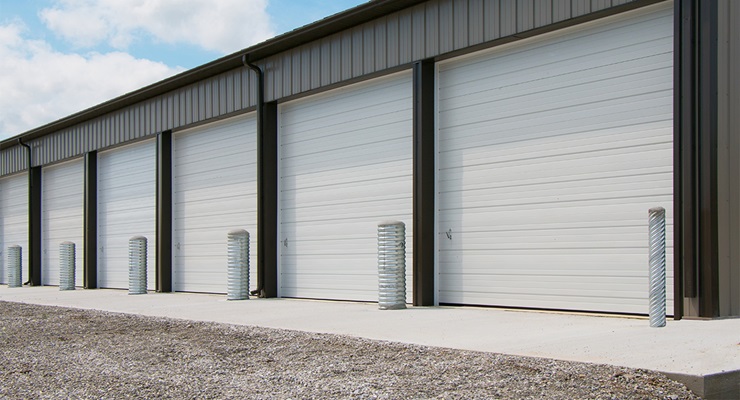

Non-Insulated Sectional Steel Doors - Model 2411

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/8c2e3aad-6125-445b-b88e-77f306f1d25c/99282387-33f2-4593-9f82-7d30768e578a/Model 2411.jpg

Category

Sectional Doors

Description


An attractive and durable commercial sectional door, our Models 2411 and 2415 provide reliable service for a variety of moderate to heavy-duty applications. These doors are designed and built with quality and appearance that feature nominal 24-gauge ribbed steel sections in a smooth or stucco-embossed finish. The C-shaped stiles, have pre-located, extruded holes for quick, secure mounting of hinges. It also features end stiles that wrap around the exterior of each section to protect the section face from wear caused by the door jambs. These doors can come in a wide variety of sizes and configurations to fit most door openings and can also be customized with our time-saving simple install system or increase section thickness with the impact panel option. Engineered to provide commercial strength, the commercial sectional doors are ideal for high-traffic applications at a competitive value.

Features


- Heavy-duty c-shaped vertical stiles provide added strength and allow a quick, secure hinge attachment

- End stiles wrap around the exterior of each section to protect the section face from wear caused by the door jambs

- Comes in a wide variety of sizes and configurations that provide durability and value

- The exterior skin helps increase strength while enhancing the building’s visual appearance

- 1-Year against defects in materials and workmanship

PropertyValue
Wind Load (optional)No
High Cycle Spring Options25,000, 50,000, 100,000
Safety FocusedSensing edges, Photo eyes
ColorsWhite Stucco, Brown Stucco
Impact Panel OptionThe Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21" and 24" sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime, costly repairs and has impact-resistant composite skin that surrounds an expanding polystyrene core.
Max. Width20'2"
Max. Height16'1"
Lite OptionsVision, Full View
Joint ProfileShiplap
R-value* (optional)7.64
OperationChain hoist operation , Motor operation
Exterior SurfaceStucco Embossed / Ribbed
Door TypeNon-Insulated Steel
U-value* (optional)0.13
Steel GaugeNominal 24, ribbed
Spring Cycles10,000
Design Options3” Track, Solid shafts, Special track designs, Mullions, Perimeter weather seal, Simple Install System Option - Wayne Dalton’s track and hardware system provides for easy, one-person installation. Components include a one-piece vertical lift track and simplified hardware.
Ideal ApplicationsDistribution Centers, Manufacturing Plants, Production Facilities, Storage Facilities, Agricultrural Facilities, Municipal Buildings, Truck Bays

Product Resource download links.

Warranty

Model Specifications - DOC

Model Specifications - PDF

CAD Sectional Steel Door

Full Line Specs - DOC

Revit

Full Line Specs - PDF
