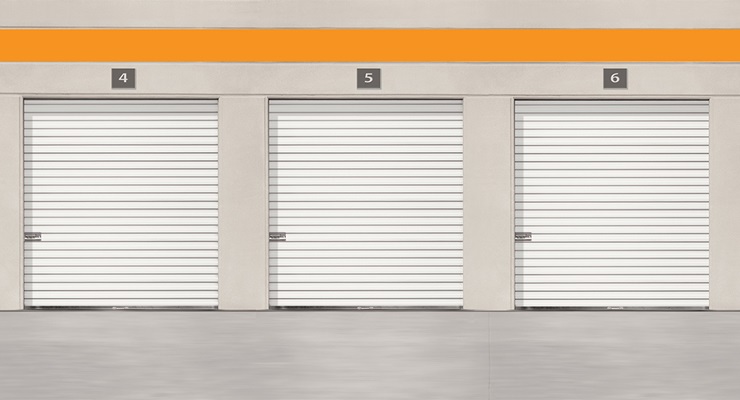

Roll Up Sheet Doors - Model 780-CD

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/7d9b1fe4-8971-4956-8b77-76073772c627/5b89ea99-bb60-4164-a1ab-9aec9faf29cd/780cd.jpg

Category

Rolling Doors

Description


Roll-up Sheet Doors offer an ideal solution when your project requires an attractive and solidly constructed sheet door that is also easy on your budget. Designed to fit most building structures, we offer several types, including mini-doors, low-profile, commercial or heavy commercial roll-up doors. Select from a wide range of designer colors so your building can maintain a uniform look while still providing accessibility to meet your needs. These doors incorporate innovative design elements that enable fast installation and ensure smooth operation for long-lasting performance.

Features


- Unique curtain profile facilitates smooth operation and minimizes curtain damage

- Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements

- Bearings prevent steel-to-steel contact, improve door operation and increase door shaft life

- Quick-connect headplate eliminates the need for multiple fasteners

- Quick-connect bottom bar stops minimize fasteners and allow easy insertion of curtain into the guides

- Universal guide allows fastening in concrete, masonry, or wood jambs and fastening or welding to steel jambs

- Through-hole design reduces sideroom requirements

- 12-Months Limited Warranty on all product parts and components

PropertyValue
Door TypeRoll Up Sheet Door
Ideal ApplicationsCommercial Buildings, Self Storage, Loading Docks, Freight Terminals, Warehouse, Office Buildings
Headplate18-gauge
Guides18-gauge
Wind Load (optional)Yes
Locking OptionsDouble shackle, Cylinder, Left side lock and step plate
OperationChain hoist with reduced drive; Motor0
R-Value* (optional)4
Bottom BarExtruded aluminum reinforced with steel, roll-formed angles
Counterbalance Assembly12"
Max. Width16'
Max. Steel Gauge26
Max. Height16'
MaterialGalvanized Steel
LockingDual slide bolt
ColorsWhite, Glossy White, Silhouette Gray, Desert Tan, Teal, Dark Teal, Polar Blue, Garnet Red, Royal Blue, Forrest Green, Walnut Brown, Bronze

Product Resource download links.

Warranty

Rolled Guide Detail Masonry Concrete Jamb

Rolled Guide Detail Steel Jamb

Rolled Guide Detail Wood Jamb
