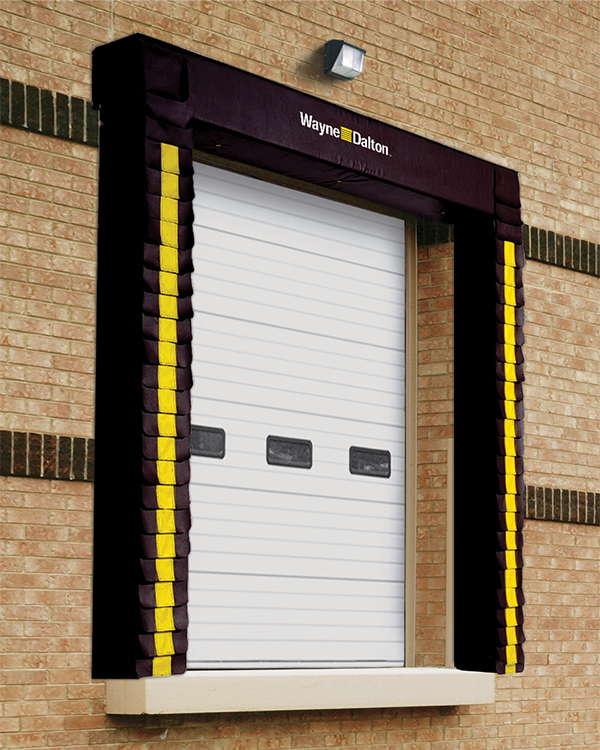

Fixed Dock Seal

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/7b037e2b-afd1-41fd-8f6b-84fd1ddb1893/894babb9-6166-44b8-875c-b35f2be5a5fd/fixed-dock-seal-sectional-door.jpg

Category

Dock Equipment

Description


This seal helps keep out weather and saves on heating/cooling costs. The trailer compresses the foam top pad and side columns of this seal.

Features


- The fabric is double stitched with high strength polyester thread that has been UV treated for long term durability

- The columns and top pad have premium grade foam with full compression and recovery properties in temperatures as low as -40°F

- The fire resistant foam is continuously bonded to the backing with a non-flammable adhesive with elastic properties for long life

- Plated vent openings drain moisture and promote air circulation for compression in the vertical columns and top pad

- Made of fire resistant fabric and available in multiple weights including a premium 40 oz fabric that has 6 times more abrasion resistance

- All fabrics are treated with UV protection to help prevent fading

- Optional column wear pleats provide additional tearing and abrasion protection

- Heavy duty 66 oz. wear pleats on the top and bottom corners also available

- At docks where there is no leveler, a bottom seal pad can provide a seal on all four sides of the opening along with the side columns and top pad

PropertyValue
22 oz Fabric ColorBlack, Blue, Gray, Green, Brown - Optional
40 oz Fabric Color - PremiumBlack - Optional
40 oz Fabric Color - RegularBlack, Blue, Gray, Green, Red, Brown - Optional
Bottom Seal Pad4' or 8' Long - Optional
Column Height 8' Standard; 7'6" - 9' Optional
CurtainVelcro Hold Curtain Fabric or PVC (Drop: 12"/18"/24") - Standard
Double Layer FabricOptional
Draft ControlTwo bottom draft flaps
FrameTreated Lumber - Standard; Galvanized Steel - Optional
Guide Stripes24" High - Standard; Full Height - Optional
Heavy Duty Wear Pleats66 oz Top and Bottom Corner Pleats, 4" exposure (Black, Blue, Orange) - Optional
MountingGalvanized Mounting Hardware - Standard
Projection10' Standard; 8' - 20' Optional
Scuff Guards(40 oz Regular, Black) - 48" tall additional layer of fabric inside column - Optional
Security Seal4' or 8' High - Optional
Wear Pleats4"/8"/16" exposure (same weight/color available as above) - Optional
