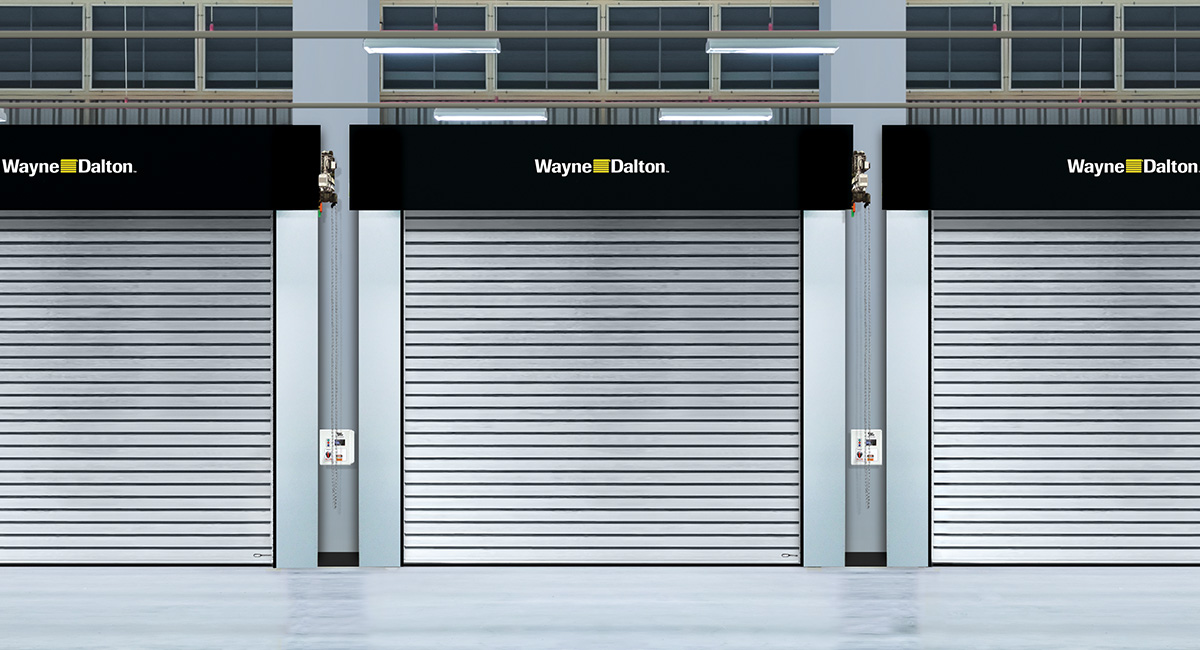

High Speed Metal Doors- Model 888

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/7a91c376-eef2-4ce7-a2d9-e6eb1603db3d/fd7a9a24-e63c-480e-af85-74d788c3304a/888-1.jpg

Category

High Speed Doors

Description


Built tough with power, security, and durability in mind, Model 888 ADV-Xtreme is ideal for applications where security and performance are a priority. This high speed metal door is constructed with dual-walled aluminum that can withstand pressure up to 100 psf*.‬‬‬ Model 888 ADV-Xtreme also features a patent-pending helical-designed steel head plate that helps prevent metal curtain contact and provides smooth operation. A patent-pending curtain monitoring device ensures the door has a redundant system to monitor the position of the door. High speed metal doors are designed for quick installation and provide easy access to maintain.

Features


- High Performance Design - Springless design for over 1 million cycles and requires minimal interruption for maintenance; Gravity drive system coupled with variable frequency drive eliminates sudden jolts from door start and stop operation; Direct-mounted gear drive minimizes wear and tear

- Durable Construction - Dual-walled, solid aluminum curtain for security and privacy; Steel headplate utilizes high strength, durable rollers to prevent metal curtain contact and provides smooth operation

- Installer Friendly - Fully-assembled curtain arrives pre-wrapped in headplate and trusses, ready for installation; Completely hinged guide for easy access and maintenance; Pre-wired motor connection and plug and play accessories reduces need for licensed electrician

- Safety Focused - Patent-pending integrated curtain monitoring device ensures the door has a redundant system to monitor the position of the door; Safety light curtain minimizes contact with objects in the doorway; Monitored wireless reversing edge

PropertyValue
Warranty Information5 Year Limited Warranty
Actuation OptionsPush button, Motion detector, Radio control, Key switch, Pull switch, Loop detector, Treadle switch, wireless
Door TypeMetal Doors
Design OptionsSquare Hood; Vision Options - Perforated Slat- up to four slats with 24% open area (up to 20' wide) and Vision Slat- up to four slats for vision through the door; Slim Guide - Reduces jamb side room (size limitations may apply)
Max Opening Speedup to 80” per second
Max Height21'
Bracket/Hood Structure ColorBlack Powder Coat
Control PanelVariable frequency drive, self-diagnostic, programmable service reminders, padlockable fused disconnect NEMA 4X rated, cULus listed
Guides/Brackets/Struts/Bottom Bar ColorsSilver powder coat made to mimic anodized aluminum.
OpeningsExterior/Interior (mount inside)
Model888
Max Closing Speedup to 80” per second
Max Width26'
Programmable LED Lighting Package3' tall light bar with red, yellow, and green lights
Safety FeaturesObstruction Safety Detection and Reversing Sensing Edge
Signal Device OptionsRed/green LED warning light, Horn/strobe combination, Rotating warning light
Supply Voltages230V AC 3 PH, 460V AC 3 PH, 575V AC 3 PH
Wind Loadup to 100.0** psf
Curtain MaterialDual-walled aluminum
Design SolutionsFlorida Building Commission Impact Rating – Certified for Florida's High Velocity Hurricane Zone
RAL Powder CoatApproximately 200 powder coat options are available to complement the exterior colors of a building.
OperationDirect drive motor and gearbox system with field changeable universal handing and door stop safety device
