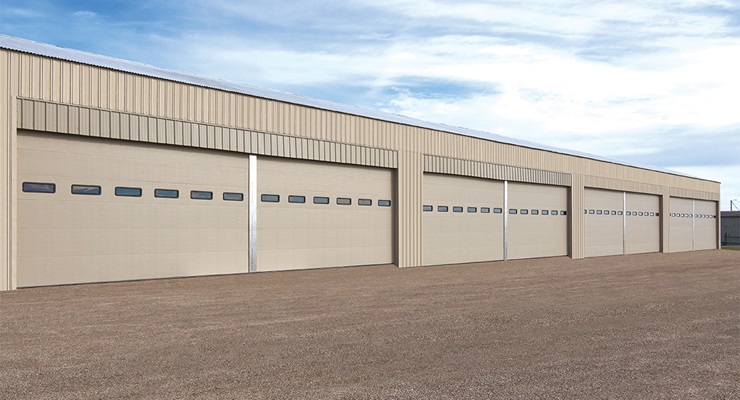

Product Details
| Property | Value |
|---|---|
| Installation Insert - Commercial Sectional Low Headroom | https://www.wayne-dalton.com/docs/default-source/instuction-inserts/commercial-sectional-low-headroom-installation-insert-360564-insert.pdf |
| Quick Start Guide | https://www.wayne-dalton.com/docs/default-source/quick-start-guides/comm-insulated-steel/sectional-door-thermomark-series-torsion-standard-lift-qsg-353362.pdf |
| Sectional Door Systems Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/commercial/comm-sectional/sectional-door-systems-brochure.pdf |
| Quick Start Guide - Wind Load | https://www.wayne-dalton.com/docs/default-source/quick-start-guides/comm-insulated-steel/thermomark-5150-5155-5200-5255-windload-qsg-353364.pdf |
| Model Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/commercial/sectional-insulated/sectional-steel-door-model-5150-5200-brochure.pdf |
| Thermospan® Insulated Door Operator System Warranty | https://www.wayne-dalton.com/docs/default-source/warranty/comm-rolling/thermospan-insulated-sectional-steel-door-warranty.pdf |
| Installation Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/sectional/5150-5155-5200-5255-standard-lift-353361.pdf |
| Installation Instructions ThermoMark™ Wind Load Model | https://www.wayne-dalton.com/docs/default-source/install/comm/sectional/5150-5155-5200-5255-starndard-lift-windload-353363.pdf |
| Operating Clearance Commercial Sectional | https://www.wayne-dalton.com/docs/default-source/door-operating-clearance/commercial-sectional-general-operating-clearances.pdf |
| Track Selection Guide Sectional Steel Doors | https://www.wayne-dalton.com/docs/default-source/panel-section-guide/track-selection-guide-sectional-steel-doors.pdf |
| Sectional Steel Door Impact Section Option Flyer | https://www.wayne-dalton.com/docs/default-source/brochure/comm-sectional/sectional-steel-door-impact-section-option-flyer.pdf |
| Application - Cold Storage - Food & Beverage | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-cold-storage-food-beverage-applications-brochure.pdf |
| Door Panel Section Guide | https://www.wayne-dalton.com/docs/default-source/panel-section-guide/door-panel-sectionguide-model-5150-5200.pdf |
| Cable Keepers Installation Insert | https://www.wayne-dalton.com/docs/default-source/instuction-inserts/cable-keepers/cable-keeper-insert.pdf |
| Property | Value |
|---|---|
| Wind Load (optional) | Yes*** |
| U-factor | 0.15 |
| Air infiltration (IECC) | 0.23 cfm/ft2 at 25 mph |
| High Cycle Spring Options | 25,000, 50,000, 100,000 |
| Operation | Chain hoist operation, Motor operation |
| Safety Focused | Cable failure device, Sensing edges, Photo eyes |
| Design Options | Jamb seal, Mullions, 3” Track |
| Lite Options | Vision, Contemporary, Colonial, Ranch, Sonoma, Sonoma Ranch, Stucco-Embossed Pinstripe |
| Window Options | Factory glazed windows |
| Window Placement Options | Horizontal, Vertical, All Window |
| Impact Panel Option | The Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21" and 24" sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime, costly repairs and has impact-resistant composite skin that surrounds an expanding polystyrene core. |
| Color - Stain Options | Golden Oak Stain, Mission Oak Stain |
| Max. Width | 20'2" |
| Max. Height | 20'1" |
| Ideal Applications | Manufacturing Plants, Production Facilities, Loading Docks, Storage Facilities, Commercial Buildings, Industrial Facilities, Drive-Thru Bays, Truck Bays, Vehicular Storage |
| Exterior Surface | Embossed Wood Grain or Stucco Embossed / Pinstripe |
| Spring Cycle | 10,000 |
| Sound Transmission (STC- ASTM E 413) | Class 20 |
| Sectional Thickness | 1 3/8" 3-layer |
| R-value | 12.5 |
| Door Type | Insulated Sectional Steel |
| Color - Paint Options | White Smooth, Almond, Taupe, Terra Bronze, Brown, Black |
| Thermal Break | Yes |
