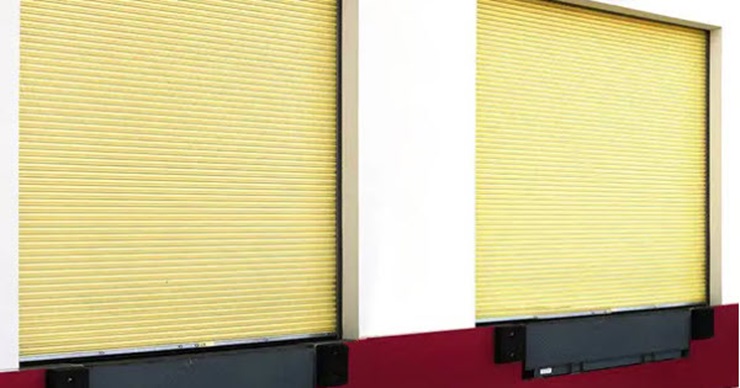

Rolling Service Door - Model 900

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/4a978feb-3f69-498c-9142-2c097f6cb02d/a02133e4-7a43-4de5-b2c0-d1c145bdf646/Model 900.jpg

Description

Models 900 and 926 Rolling Steel Service Doors are economical, secure solutions to protect facility openings. These rolling steel service doors are composed of flat-faced slats that provide a natural watershed, helping to reduce corrosion. Slats are designed with free-acting interlocking joints that permit easy articulation when the door coils. They are popular in virtually any interior and exterior commercial or industrial applications where durability and strength are needed for even the most critical projects.

Features

- The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils.

- Features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal and safety edge options. It is designed for easy installation and does not require fasteners in the guide openings, so the bottom bar does not interfere with door operation.

- Zinc-plated, cast-iron wind locks add strength and prevent lateral slat movement.

- Designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.

- 24-Months Limited Warranty on all product parts and components

Property	Value
Max. Width	14'
Max. Height	14'
Ideal Applications	Warehouse and Industrial Facilities, Manufacturing Facilities ,Food and Beverage Facilities, Parking Garages, Public and Government Facilities, Shipping and Receiving Docks
Hood/Guide/Brackets/Bottom Bar Finish	Primed Black, Anodized Aluminum- mill, clear or bronze, Stainless steel #4, Powdercoat - RAL and custom, Galvanized, Bare galvanized
Hood	24-gauge galvanized steel round hood
Wind Load	Yes
Safety Focused	End Covers, Fascia Drop stop device Spark resistance
Bottom Edge Options	Pneumatic, Electric sensing edge, Astragal
Locking Options	Slide bolts, Cylinder, Best lock, Thumb turns, Wind Locks
Design Options	Slat Profiles: Secur-Vent perforated slats, Curtain: #2 slat profile 2" curved up to 20-gauge steel; 20 or 22-gauge stainless steel; 18-gauge aluminum #17 slat profile 2" flat up to 20-gauge steel; 20 or 22-gauge stainless steel; 16 ga. extruded aluminum
Bottom Bar Options	Double angle, Extruded aluminum angle, Structural steel angle (galvanized steel only, ) Sloped
Perimeter Seal Options	Angled guide brush seal, Vinyl guide sea, Exterior lintel weather seal, Interior lintel weather seal, Internal hood baffle, Rubber hood baffle
Colors	White, Gray, Beige, Brown
Curtain Finish	Anodized Aluminum - mill, clear or bronze, Stainless steel #4, Powdercoat - RAL and custom, Painted Gray, Vision lites
Finish Options	Stainless steel, Aluminum, Powder Coat
RAL Powder Coat	Approximately 200 powder coat options are available to complement the exterior colors of a building.
Operation	Manual push-up; chain hoist where door weight exceeds manual effort
Mounting	Face-of-wall; between jambs
U-value	0.13
Exterior	Steel, Aluminum, Stainless steel
Door Type	Rolling Service Door
Curtain Material	2" galvanized steel curved slats (#2 profile) 24-gauge steel with alternating end-locks
R-value	7.7
Guides	G-guide design
Bottom Bar	Galvanized steel double angle with weatherstrip

Property	Value
Model Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-service/rolling-service-doors-model-900-brochure.pdf?sfvrsn=5a02076_7
Rolling Door Systems Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-counters/rolling-door-systems-brochure.pdf
Rolling Service Door Operator System Warranty	https://www.wayne-dalton.com/docs/default-source/warranty/comm-rolling/rolling-service-door-operator-system-warranty.pdf
Owners Manual	https://www.wayne-dalton.com/docs/default-source/owners-manual/rolling-door-end-user-manual.pdf
Door Operating Clearance	https://www.wayne-dalton.com/docs/default-source/door-operating-clearance/door-operating-clearance-model-900.pdf
Installation Instructions	https://www.wayne-dalton.com/docs/default-source/install/comm/service/800c-800-900-926-installation-341826.pdf5
Commercial Rolling Service Door Motor Accessory	https://www.wayne-dalton.com/docs/default-source/bim/rfa/accessory_waynedalton_servicedoormotor.rfa
