| Exterior | Steel |

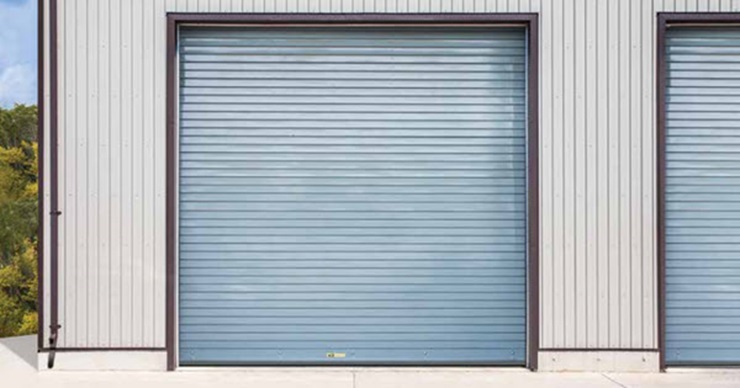

| Door Type | Rolling Service Door |
| Door Roll | Yes - No counterbalance required |
| Curtain Material | 3" insulated flat slats (#34 profile)
22-gauge galvanized steel front/24- gauge galvanized steel backer |
| Control Panel | Electronic controller with microprocessor self-diagnostics Digital readout, time delay self-close timer and non-resettable cycle counter. Enclosure is IP54 rated (NEMA 3 equivalent) |
| Max. Width | 20' |
| Max. Height | 20' |
| Wind Load | Yes |
| Actuator | Push-button |
| Actuation Options | Push Button, Sensing Edge, Motion Detector, Radio Control, Loop Detector, Extra set of Photo Eyes, Fixed/Dual Frequency Receivers/Transmitters, Florida Building Commission Impact Rating – Certified for Florida's High-Velocity Hurricane Zone – Level D |
| Colors | Curtain - White, Gray, Beige, Brown; Guides/Bottom Bar - Black |
| Design Options | Fascia - Back Hood, Sloped Hood, Sloped Bottom Bar |
| Finish Options | Powder Coat, Hardened Powder Coat, G-90 Galvanized ; Mill, Clear, Bronze |
| Operation Options | IP65 (NEMA 4/4X equivalent) |
| Perimeter Seal Options | Guide weatherstrip, Guide brush seal, Exterior lintel seal, Interior baffle |
| RAL Powder Coat | Approximately 200 powder coat options are available to complement the exterior colors of a building. |
| Vision Options | 5” x ¾” open fenestration, 5” x ¾” acrylic vision lite |
| U-value | 0.13 |
| Ideal Applications | Warehouse and Industrial facilities, Manufacturing Facilities, Parking Garages, Public and Government Facilities, Shipping and Receiving Docks, Food and Beverage Facilities |
| Hood | 24-gauge steel |
| Guides | 3 angle guide assembly |
| Bottom Bar | Two primed angles with weatherstrip |
| Supply Voltage | 208V AC 1PH, 230V AC 1PH, 460V AC 3PH, 575V AC 3PH |
| Steel Gauge | 18 |
| STC Rating | 22 |
| Safety Features | Built-in brake mechanism
Photoelectric sensors with commercial grade guards
Motor cover |
| R-value | 7.710 |
| Operation | Direct drive integrated motor/gearbox/brake assembly with a hand chain for power outages |
| Mounting | Interior/exterior face-of-wall |
