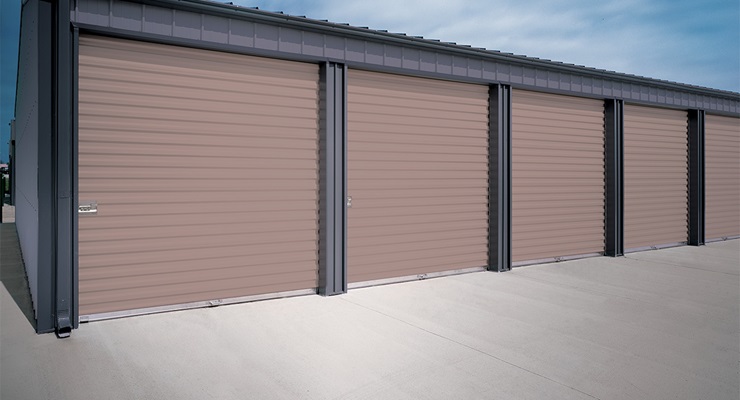

Roll Up Sheet Doors - Model 790-CW

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/3317adc1-68b6-4cad-9b73-649bea6741e7/b843b84b-0fdc-4e06-9724-7d80db5b1c02/790cw.jpg

Category

Rolling Doors

Description


Roll-up Sheet Doors offer an ideal solution when your project requires an attractive and solidly constructed sheet door that is also easy on your budget. Designed to fit most building structures, we offer several types, including mini-doors, low-profile, commercial or heavy commercial roll-up doors. Select from a wide range of designer colors so your building can maintain a uniform look while still providing accessibility to meet your needs. These doors incorporate innovative design elements that enable fast installation and ensure smooth operation for long-lasting performance.

Features


- Unique curtain profile facilitates smooth operation and minimizes curtain damage

- Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements

- Bearings prevent steel-to-steel contact, improve door operation and increase door shaft life

- Quick-connect headplate eliminates the need for multiple fasteners

- Quick-connect bottom bar stops minimize fasteners and allow easy insertion of curtain into the guides

- Universal guide allows fastening in concrete, masonry, or wood jambs and fastening or welding to steel jambs

- Through-hole design reduces sideroom requirements

- 12-Months Limited Warranty on all product parts and components

PropertyValue
Installation Instructionshttps://www.wayne-dalton.com/docs/default-source/install/comm/sheet/780cd-790cw-installation-220153.pdf
Interior Elevation Face Viewhttps://www.wayne-dalton.com/docs/default-source/cad-drawings/dwg/comm-rollupsheet/model-790-interiorelevation-faceview.dwg
Owners Manualhttps://www.wayne-dalton.com/docs/default-source/owners-manual/rolling-door-end-user-manual.pdf
Side View Sec A-Ahttps://www.wayne-dalton.com/docs/default-source/cad-drawings/dwg/comm-rollupsheet/model-790-sideview-seca-a.dwg
Model Brochure https://www.wayne-dalton.com/docs/default-source/brochure/comm-rollupsheet/roll-up-sheet-doors-790cw-780cd-770ss-brochure.pdf

Product Resource download links.

Warranty

Rolled Guide Detail Masonry Concrete Jamb

Rolled Guide Detail Steel Jamb

Rolled Guide Detail Wood Jamb

Wind Load Options
