Product Details
| Property | Value |
|---|---|
| Actuation Options | Push button, Motion detector, Radio control, Key switch, Pull switch, Loop detector, Treadle switch, wireless |
| Breakaway Self-Reset | Yes |
| Control Panel | Variable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed |
| Door Type | Rubber Doors |
| Guides/Brackets/Struts/Bottom Bar Colors | Safety Yellow, Black |
| Max Closing Speed | up to 40” per second |
| Max Height | 30' |
| Max Opening Speed | up to 50” per second |
| Max Width | 30' |

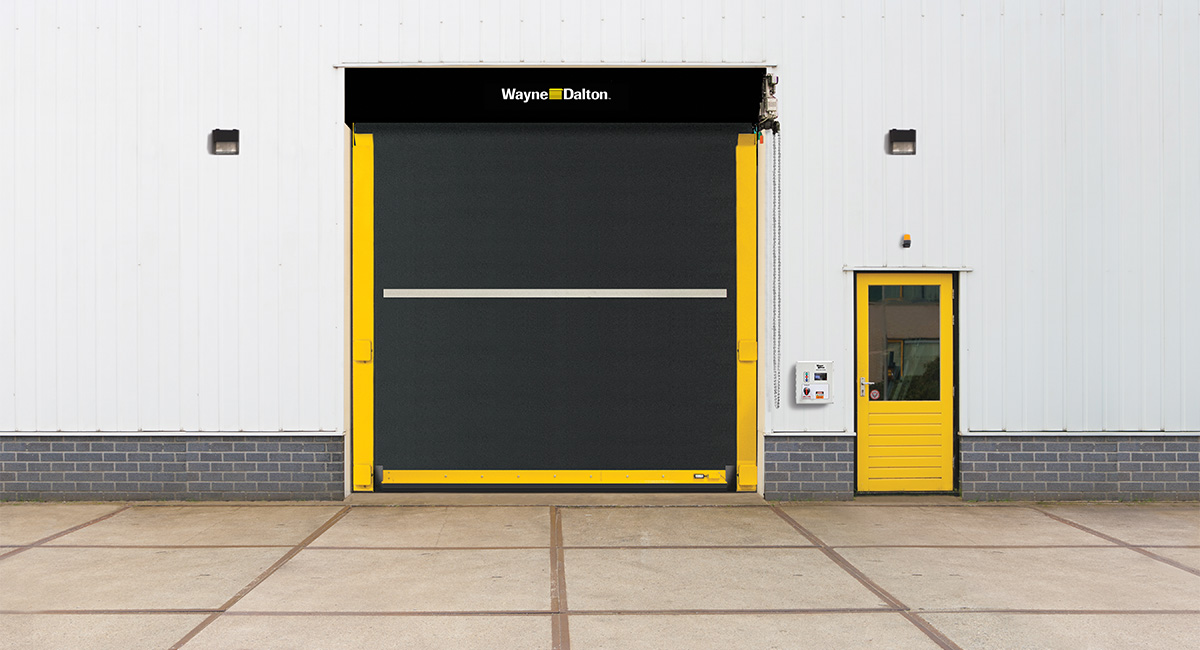

| Model | 885 |
| Openings | Exterior |
| Programmable LED Lighting Package | 3' tall light bar with red, yellow, and green lights |
| RAL Powder Coat | Approximately 200 powder coat options are available to complement the exterior colors of a building. |
| Signal Device Options | Red/green LED warning light, Horn/strobe combination, Rotating warning light |
| Warranty Information | 5-year Limited Warranty on drive motor and gearbox ; 1-year Limited Warranty on all other components |
| Wind Load | up to 27.0 psf |
| Headroom (with hood) | Up to 14' tall- 19; " 14'1" to 22' tall- 20.5"; 22'1" to 30' tall- 24.5" |
| Curtain Material | 5 layers of NBR rubber with 4 layers of polyester weave |
| Operation | Direct drive motor and gearbox system with field changeable universal handing and door stop safety device |
| Curtain Color Options | Black, Blue |
| Safety Features | Obstruction Safety Detection and Reversing Sensing Edge |
| Supply Voltages | 208V AC 3 PH, 230V AC 3 PH, 460V AC 3PH, 575V AC 3 PH |
| Property | Value |
|---|---|
| Application - Healthcare & Pharmaceutical | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-healthcare-pharmaceutical.pdf |
| Application - Public Government Facility | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-public-government-facility.pdf |
| Application -Multi-Family Housing | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-multi-family-housing.pdf |
| Applications Chart | https://www.wayne-dalton.com/docs/default-source/charts/adv-x-high-speed-doors-applications-chart.pdf |
| Model Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/885-high-speed-door-sales-sheet.pdf |
| High Speed Doors Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/adv-xtreme-high-speed-doors-brochure.pdf |
| Installation Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/high-speed/885-installation-820726.pdf |
| Light Curtain Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/service/adv-x-series-light-curtain-instructions.pdf |
| Owners Manual | https://www.wayne-dalton.com/docs/default-source/owners-manual/high-speed-door-end-user-manual-500329.pdf |
| Installation Instructions - Low Headroom | https://www.wayne-dalton.com/docs/default-source/install/comm/high-speed/885-installation-low-headroom-364470.pdf |
