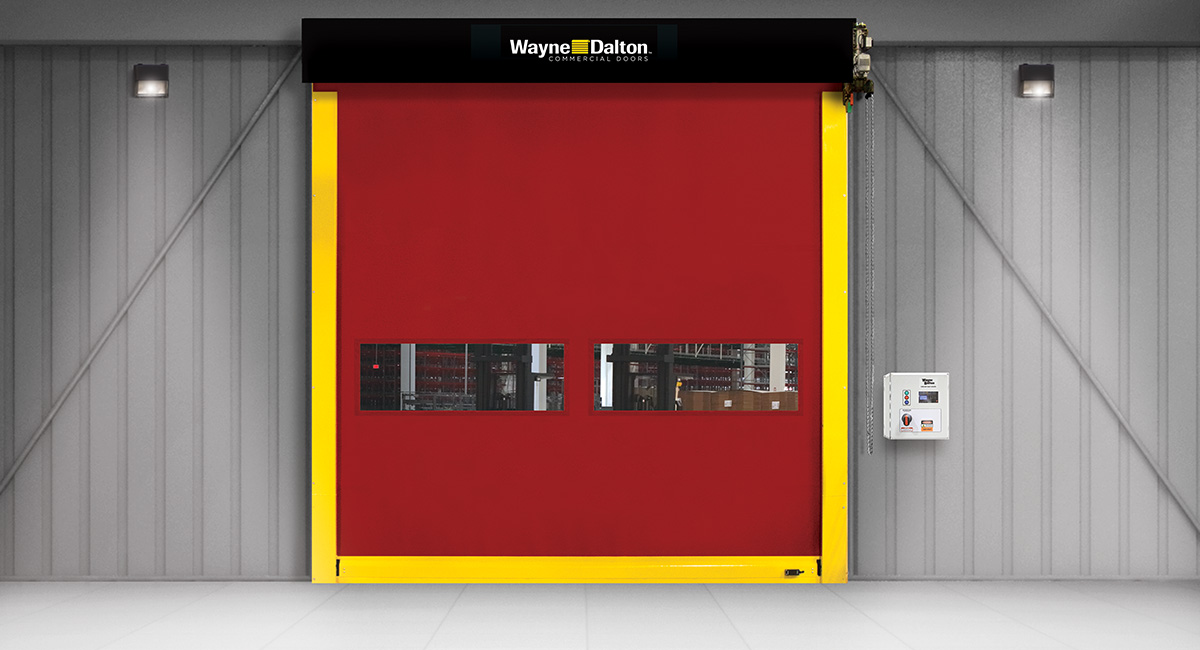

High Speed Fabric Doors - Model 881

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/240d44d9-5d73-45fa-8dee-bfecf6cc8d0d/3579a28d-4f96-4a61-af9a-11e6d7e89d8a/model 881.jpg

Description

Model 881 ADV-Xtreme is an interior high speed fabric door to satisfy commercial applications where indoor distribution or manufacturing facilities require environmentally controlled environments for high traffic areas from forklift operation. Model 881 ADV-Xtreme high speed interior fabric door has an airtight design to prevent airborne contaminants from entering the controlled and non-controlled environments and reduces air exchange to no higher than .236 cfm/sf (ASTM E-283). Model 881 can withstand a pressure of up to 7.5 psf, making it an excellent option to separate high and low-pressure rooms in large facilities.

Features

- High Performance Design - Strutless design lowers the operational noise of the door for quiet and smooth operation; Springless design requires minimal interruption for maintenance; Direct-mounted gear drive minimizes wear and tear; Variable frequency drive eliminates sudden jolts from door start/stop

- Independently-Tested Airtight Design - Prevents airborne contaminants from entering a controlled environment; Reduces air exchange to no higher than .236 cfm/sf (ASTM E-283)

- Field Repairable - Patent-pending breakaway system design with impact detection and push button self-repair; Patent-pending curtain lock makes door easy to repair in the field; Hinged guides provide easy access for maintenance

- Installer Friendly - Pre-assembled sub-assemblies for easier installation; Plug-and-play wiring reduces the need for a licensed electrician

Property	Value
Programmable Lighting Package Flyer	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-doors-programmable-lighting-package-flyer.pdf
Model Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/881-high-speed-door-brochure.pdf
Applications Chart	https://www.wayne-dalton.com/docs/default-source/charts/adv-x-high-speed-doors-applications-chart.pdf
High Speed Doors Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/adv-xtreme-high-speed-doors-brochure.pdf
Installation Instructions	https://www.wayne-dalton.com/docs/default-source/install/comm/high-speed/881-installation-820722.pdf
Light Curtain Instructions	https://www.wayne-dalton.com/docs/default-source/install/comm/service/adv-x-series-light-curtain-instructions.pdf
Application - Cold Storage - Food & Beverage	https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-cold-storage-food-beverage-applications-brochure.pdf
Application - Healthcare & Pharmaceutical	https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-healthcare-pharmaceutical.pdf
Stainless Steel Package Flyer	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/881-high-speed-doors-stainless-steel-package-flyer.pdf
Owners Manual	https://www.wayne-dalton.com/docs/default-source/owners-manual/high-speed-door-end-user-manual-500329.pdf
ADV-Xtreme High Speed Door 881 Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/881-high-speed-door-brochure.pdf
ADV-Xtreme High Speed Doors Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/adv-xtreme-high-speed-doors-brochure.pdf
Seywave Antenna Retrofit 500379-INSERT	https://www.wayne-dalton.com/docs/default-source/instuction-inserts/installation-instructions-seywave-antenna-retrofit-500379-insert.pdf
Application - Cold Storage / Food & Beverage	https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-cold-storage-food-beverage-applications-brochure.pdf
ADV-Xtreme High Speed Doors Guide Options	https://www.wayne-dalton.com/docs/default-source/panel-section-guide/adv-x-high-speed-doors-guide-options.pdf
ADV-Xtreme High Speed Doors Comparison Chart	https://www.wayne-dalton.com/docs/default-source/brochure/comm-hspeed/high-speed-doors-comparison-chart.pdf
ADV-Xtreme High Speed Doors 880-887 Warranty	https://www.wayne-dalton.com/docs/default-source/warranty/comm-rolling/adv-x-high-speed-doors-warrant-880-887y.pdf
ADV-Xtreme High Speed Door Owners Manual	https://www.wayne-dalton.com/docs/default-source/owners-manual/high-speed-door-end-user-manual-500329.pdf

Property	Value
Operation	Direct drive motor and gearbox system with field changeable universal handing and door stop safety device
Openings	Interior / Interior
Max Height	14'
Actuation Options	Push button, Motion detector, Radio control, Key switch, Pull switch, Loop detector, Treadle switch
Breakaway Self-Reset	Yes
Curtain Lock	Yes
Curtain Material	2 layers of light PVC-coated polyester with 1 layer of polyester weave
Guides/Brackets/Struts/Bottom Bar Colors	Safety Yellow, Black
Max Closing Speed	up to 40” per second
Max Width	14'
Max Opening Speed	up to 70” per second
Model	881
Programmable LED Lighting Package	3' tall light bar with red, yellow, and green lights
RAL Powder Coat	Approximately 200 powder coat options are available to complement the exterior colors of a building.
Safety Features	Obstruction Safety Detection & Reversing Sensing Edge
Signal Device Options	Red/green LED warning light, Horn/strobe combination, Rotating warning light
Warranty Information	5-year Limited Warranty on drive motor and gearbox ; 1-year Limited Warranty on all other components
Wind Load	up to 7.5 psf
Control Panel	Variable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed
Certified Air Tightness	<0.236 cfm/sq ft (independently tested to ASTM E283 standard)
Curtain Color Options	Red, Blue, Gray White, Yellow, Orange, Black
FDA Compliant Applications Colors	Royal Blue, White
Door Type	Fabric Doors
Supply Voltages	120V AC 1 PH, 208V AC 1 PH, 220V AC 1 PH, 208V AC 3 PH, 230V AC 3 PH, 460V AC 3 PH, 575V AC 3 PH
Spring Cycles	Obstruction Safety Detection & Reversing Sensing Edge
