Product Details

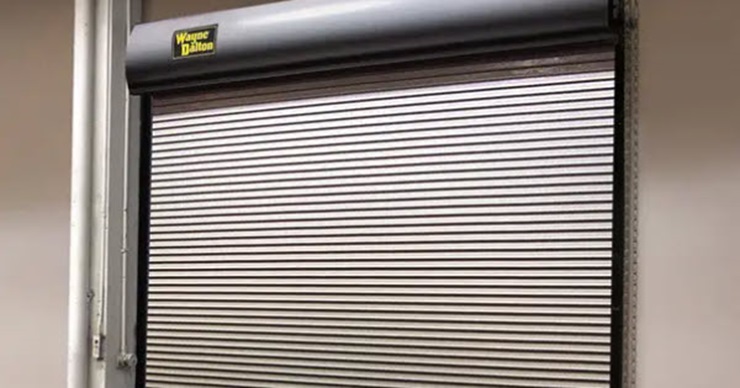

Rolling Service Door - Model 926

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/1ea1275e-552d-4a32-aec3-0d1128f31ca4/5c089f12-42c9-419e-8278-de97d309637d/Model 926.jpg

Description

Models 900 and 926 Rolling Steel Service Doors are economical, secure solutions to protect facility openings. These rolling steel service doors are composed of flat-faced slats that provide a natural watershed, helping to reduce corrosion. Slats are designed with free-acting interlocking joints that permit easy articulation when the door coils. They are popular in virtually any interior and exterior commercial or industrial applications where durability and strength are needed for even the most critical projects.

Features

- The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils.

- Features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal and safety edge options. It is designed for easy installation and does not require fasteners in the guide openings, so the bottom bar does not interfere with door operation.

- Zinc-plated, cast-iron wind locks add strength and prevent lateral slat movement.

- Designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.

- 24-Months Limited Warranty on all product parts and components

Property	Value
Safety Focused	End Covers, Fascia, Drop stop device, Spark resistance
RAL Powder Coat	Approximately 200 powder coat options are available to complement the exterior colors of a building.
Bottom Bar Options	Double angle, Extruded aluminum angle, Structural steel angle (galvanized steel only, ) Sloped
Bottom Bar	Galvanized steel, double angle design with bottom astragal
Perimeter Seal Options	Angled guide brush seal, Vinyl guide sea, Exterior lintel weather seal, Interior lintel weather seal, Internal hood baffle, Rubber hood baffle
Operation	Manual Chain hoist, Motor, Motor with chain hoist, Wall crank, Awning crank, Through wall
Mounting	Face mount; between jambs
Max. Width	12'
Max. Height	12'
Ideal Applications	Warehouse and Industrial Facilities, Manufacturing Facilities ,Food and Beverage Facilities, Parking Garages, Public and Government Facilities, Shipping and Receiving Docks
Hood	22-gauge steel, Square hood
Wind Load	Yes
Locking Options	Slide bolts, Cylinder, Best lock, Thumb turns, Wind Locks
Colors	White, Gray, Beige, Brown
Hood/Guide/Brackets/Bottom Bar Finish	Primed Black, Anodized Aluminum- mill, clear or bronze, Stainless steel #4, Powdercoat - RAL and custom, Galvanized, Bare galvanized
Bottom Edge Options	Pneumatic, Electric sensing edge, Astragal
Guides	Three angle: galvanized steel, stainless, aluminum, hot dipped galvanized (structural steel angle only)
Exterior	Galvanized steel
Door Type	Rolling Service Door
Design Options	Slat Profiles: Secur-Vent perforated slats, Curtain: #2 slat profile 2" curved up to 20-gauge steel; 20 or 22-gauge stainless steel; 18-gauge aluminum #17 slat profile 2" flat up to 20-gauge steel; 20 or 22-gauge stainless steel; 16 ga. extruded aluminum
Curtain Material	2" flat slats (#17 profile) 26-gauge steel with alternating end-locks
Curtain Finish	Anodized Aluminum - mill, clear or bronze, Stainless steel #4, Powdercoat - RAL and custom, Painted Gray, Vision lites

Property	Value
Rolling Service Door Operator System Warranty	https://www.wayne-dalton.com/docs/default-source/warranty/comm-rolling/rolling-service-door-operator-system-warranty.pdf
Rolling Door Systems Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-counters/rolling-door-systems-brochure.pdf
Model Brochure	https://www.wayne-dalton.com/docs/default-source/brochure/comm-service/rolling-service-door-brochure-926-brochure.pdf?sfvrsn=a6b7897b_5
Door Operating Clearance	https://www.wayne-dalton.com/docs/default-source/door-operating-clearance/door-operating-clearance-model-926.pdf
Installation Instructions	https://www.wayne-dalton.com/docs/default-source/install/comm/service/800c-800-900-926-installation-341826.pdf5
Owners Manual	https://www.wayne-dalton.com/docs/default-source/owners-manual/rolling-door-end-user-manual.pdf
Commercial Rolling Service Door Motor Accessory	https://www.wayne-dalton.com/docs/default-source/bim/rfa/accessory_waynedalton_servicedoormotor.rfa
