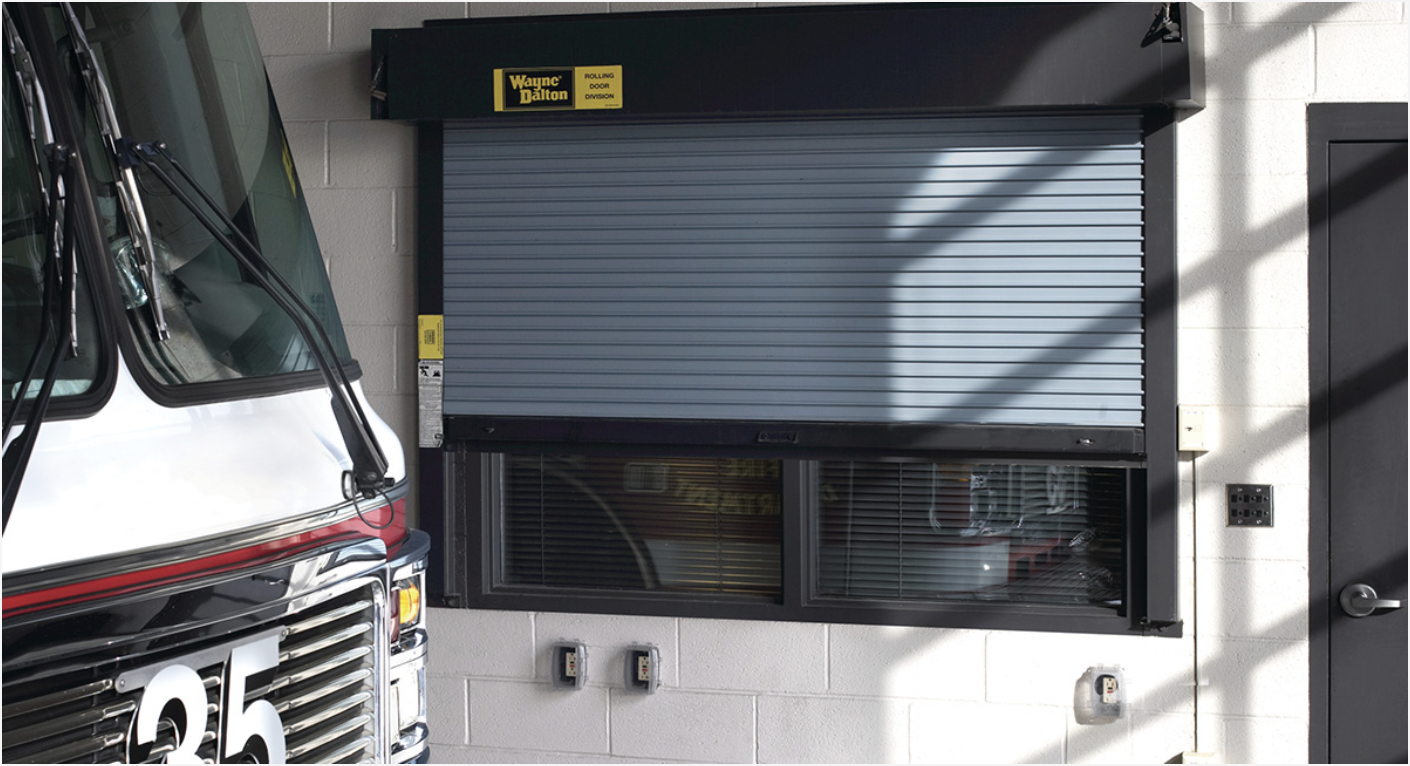

Fire Rated Counter Shutters - Model 550

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/0fa10120-be2f-4cbf-810f-c638b3fc16c7/8bcaaaed-0608-4172-979c-7f505283d901/Models 540 & 550.png

Category

Rolling Doors

Description


The FireStar® Fire-Rated Counter Shutters meet the demands of applications that require a pleasing appearance combined with certified and labeled fire protection for your property. Our innovative and exclusive design provides a lift-up operation that is extremely easy to test and does not require tools to reset the mechanism. The FireStar® Model 540-550 fire-rated counter shutters are compact, simple, and an innovative solution for your safety and fire protection needs. As a bonus, the design offers very quiet and smooth functionality.

Features


- UL or FM Rated; Conforms to NFPA Standard 80

- Non-Tension Release provides the ease of simply opening the door to reset the drop mechanism after ‘an event’

- Floor resettable motor feature for ease of test and reset that does not require tools or service technicians

- Unique clean design eliminates excess cables for ease of installation, testing and maintenance

- Sleek 2-piece guide assembly provides better aesthetic appeal and allows for easier installation

PropertyValue
OperationManual
MountingSteel, masonry, fire rated wood, fire rated drywall, 16 + gauge steel jambs
Release MechanismYes
Door TypeFire Doors
ColorsWhite, Gray, Beige, Brown
RAL Powder CoatApproximately 200 powder coat options are available to complement the exterior colors of a building.
Vision OptionsFireLites
Actuation OptionsWayneGard™ Release System, Smoke Detectors, SmokeTite™ UL-Labeled smoke and draft control package, Smoke seal
Signal Device OptionsWayneGard™ Release System, Horns, Strobes
Max. Width16'
Max. Height9'
MaterialStainless steel
Ideal ApplicationsSchools, Concessions, Hospitals, Cafeterias, Retail
Hood24-gauge
Design SolutionsFire-rated countertop
CurtainInterlocking roll-formed slats with alternate slats fitted with metal end-locks
CounterbalanceHelical springs, oil tempered, iron barrel plugs for anchoring springs to shaft and pipe; 20,000 cycle
BracketsSteel plates enclose ends of coil and provide support for counterbalance pipe at each end
Bottom BarSteel single angle

Product Resource download links.

Warranty

Model Specifications - DOC

Model Specifications - PDF

CAD Fire Counter Shutter Face Mount

CAD Fire Service Door Face Mount

CAD Fire Counter Shutter Between Jambs

CAD Fire Counter Shutter Face Mount

CAD Fire Service Door Between Jamb

Full Line Specs - DOC

Revit

Full Line Specs - PDF
