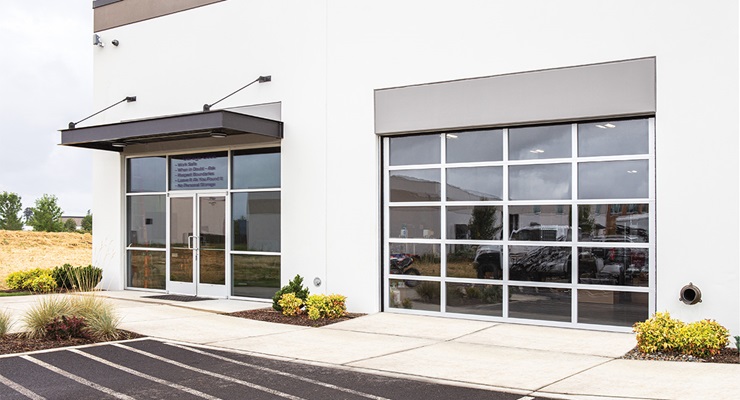

Sectional Aluminum Door - Model K-AL

https://smartbim-library-production.s3.amazonaws.com/manufacturers/67076ff9-7d35-4921-b8f1-da198484b3c8/products/0f9b4e48-b75a-4a06-9012-95e815a043d8/616c6c25-1cf8-4fed-acbf-f60b7a9b950a/K-AL.jpg

Category

Sectional Doors

Description


Model K-AL glass commercial doors are virtually maintenance-free and weather-resistant, and sturdy. The aluminum full-view sectional door is ideal for a variety of applications ranging across various storefronts and other commercial buildings where you want to increase visibility and allow more light in to enter the interior. Glass commercial doors are offered in a wide range of glass options and frame finishes, as well as optional insulated rails and stiles. The Model K-AL aluminum full-view doors are the preferred choice when visibility and light transmission are just as important as the aesthetics. Model K-AL is available in the Western region of the United States.

Features


- 2” thick sections with box-type extrusions ensuring durability

- 2-1/4” integral reinforcing fins on large doors provide additional stability

- Large glass panels allow maximum light and visibility

- Vinyl weather seal between sections to minimize air and water infiltration

- 5-Year limited

- 1-Year limited powder coat finish

PropertyValue
Spring Cycles10,000
High Cycle Spring Options25,000, 50,000, 100,000
Weather Stripping OptionsJamb seals, Header seals
Colors - Anodized Aluminum FinishesClear, Dark Brown, Black
WeatherstrippingFlexible bulb-type strip at bottom section
OperationElectric operator, chain hoist, or pull rope
Max. Width24'
Insulation Options (Model 452)Insulated Frame, Polyurethane-filled stiles and rails - add R-value up to 4.25
Ideal ApplicationsService Station, Auto Dealership, Car Wash, Store Fronts, Service Bays, Restaurants, Bars
StilesEnd stiles and center stiles are 3" wide, minimum wall thickness 0.062"
RAL Powder CoatApproximately 200 powder coat options are available to complement the exterior colors of a building.
RailsTop, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2" wide with a minimum wall thickness of 0.062"
Double End Stiles(required by weight)
Door TypeSectional Aluminum
Door AssemblyStile and rail assembly of aluminum alloy 6063-T6, 2" thick stiles and rails
Colors - Powder Coat FinishesWhite, Brown, Black
Max. Height18'
Locking OptionsInterior mounted slide lock with interlock switch for automatic operator, Keyed lock, Keyed lock with interlock switch for automatic operator
LockingInterior mounted slide lock
TrackProvide track as recommended by the manufacturer
