Product Details
| Property | Value |
|---|---|
| Ideal Applications | Parking Garages, Auto Dealerships, Warehouses, Manufacturing Facilities, Airports, Hospitals, Government Buildings, Police Sally Ports, Shipping and Receiving Docks |
| Hood | 24-gauge steel galvanized |
| Guides | 3 angle guide assembly |
| Exterior | Steel |

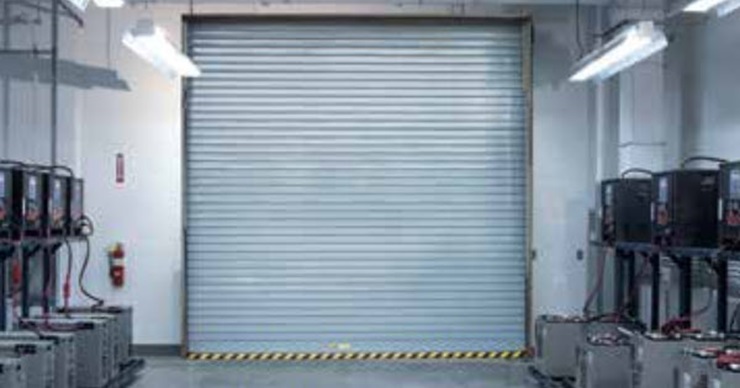

| Door Type | Rolling Service Door |
| Door Roll | Yes - No counterbalance required |
| Supply Voltage | 208V AC 1PH, 230V AC 1PH, 460V AC 3PH, 575V AC 3PH |
| Steel Gauge | 16 |
| Safety Features | Built-in brake mechanism Photoelectric sensors with commercial grade guards Wireless Monitored Safety Edge Motor cover |
| Bottom Bar | Two equal angles Thickness: 0.12-inch min. |
| Wind Load | Yes |
| Actuation Options | Push Button, Motion Detector, Radio Control, Key Switch, Loop Detector, Extra set of Photo Eyes |
| Signal Device Options | Warning Light, Horns , Strobes, Florida Building Commission Impact Rating – Certified for Florida's High Velocity Hurricane Zone |
| Design Options | Motor Cover, Hood, Slat Profile No. 14 - Non-Insulated and Slat Profile No. 14 - Ventilated |
| Vision Options | 5” x ¾” open fenestration, 5” x ¾” acrylic vision lite |
| Colors | Curtain/Hood - White, Gray, Beige; Guides/Bottom Bar - Black |
| RAL Powder Coat | Approximately 200 powder coat options are available to complement the exterior colors of a building. |
| Perimeter Seal Options | Surface guide weatherstrip, Angled guide brush seal, Exterior lintel weather seal, Interior weather baffle, High usage guide weatherstrip, Pull cord station, Palm station, 1-button push station, Open-close-stop push button station |
| Operation | Direct Drive |
| Opening Speed | 24" per second |
| Mounting | Interior/exterior face-of-wall |
| Max. Width | 30' |
| Max. Height | 20' |
| Curtain Material | 3" flat slats (#14 profile) 22 ga. steel with alternating endlocks |
| Control Panel | NEMA 4X rated; variable frequency drive, self-diagnostics, timer to close programming options and non-resettable cycle counter are included |
| Property | Value |
|---|---|
| Slat Profiles | https://www.wayne-dalton.com/docs/default-source/slat-profiles/model-800-adv-and-800c-adv-slat-profiles.pdf |
| Installation Instructions | https://www.wayne-dalton.com/docs/default-source/install/comm/service/800adv-800c-adv-install-349981.pdf |
| Owners Manual | https://www.wayne-dalton.com/docs/default-source/specifications/comm-service/model-800-adv-specs1685b6e3-99d4-4da3-9d4a-584672d5d2d9.doc |
| Seywave Antenna Retrofit 500379-INSERT | https://www.wayne-dalton.com/docs/default-source/instuction-inserts/installation-instructions-seywave-antenna-retrofit-500379-insert.pdf |
| Application -Multi-Family Housing | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-multi-family-housing.pdf |
| Rolling Door Systems Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-counters/rolling-door-systems-brochure.pdf |
| Application - Healthcare & Pharmaceutical | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-healthcare-pharmaceutical.pdf |
| Application - Retail Automotive | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-retail-automotive.pdf |
| Application - Public Government Facility | https://www.wayne-dalton.com/docs/default-source/applications/commercial-applications-public-government-facility.pdf |
| Dimension Chart | https://www.wayne-dalton.com/docs/default-source/charts/dimension-charts/model-800-800c-adv-dimension-chart.pdf |
| Model Brochure | https://www.wayne-dalton.com/docs/default-source/brochure/comm-service/service-door-800adv-and-800c-adv-brochure.pdf |
| Commercial Rolling Service Door Motor Accessory | https://www.wayne-dalton.com/docs/default-source/bim/rfa/accessory_waynedalton_servicedoormotor.rfa |
Product Resource download links.
