| Max. Width | 30' (9,144 mm) |
| Max. Height | 14' 4" (4,369) |
| Material | Steel, aluminum or stainless steel |
| Spring Cycle | 10,000 |
| Curtain Material | Mill aluminum link, galvanized steel rod, with mill aluminum spacer tube, Clear anodized aluminum link, galvanized steel rod, and clear anodized aluminum spacer tube, #4 or #2B stainless steel link, solid rod, and spacer tube; Powder coat finish |
| Curtain | Galvanized steel links and solid rods with mill aluminum spacer tube |
| Safety Features | Built-in brake mechanism
Photoelectric sensors with guards |
| Actuator | Loop Detectors, Radio Control, Push Buttons, Motion Detectors |
| Colors | Black |
| Curtain Pattern | Straight lattice 9" center vertical links with 2" center rod spacing, Brick 9" on center vertical links with 2" on center rods spacing |
| Bottom Bar Finish Options | Anodized and powder coat on extruded aluminum, Galvanized, Powder coat, Stainless #2B or #4 |
| Guide Finish Options | Powder coat finish, Zinc enriched powder coat fini |
| Control Panel | Electronic controller with microprocessor self-diagnostics. Digital readout indicates door action, alarm conditions, and fault conditions. Time delay self-close timer and non-resettable cycle counter is included. One open/close/stop push button station integrated in control panel. Enclosure is IP54 rated (NEMA 3 equivalent) |
| Supply Voltages | 220/240V AC 1PH, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH† |
| Operation | Direct drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for power outage. Horsepower appropriate to door size/weight; 230 FAC 3-phase motor (operating range 207-245V); IP54 rated (NEMA 3 equivalent) |
| Mounting | Interior or exterior face of wall |
| Ideal Applications | Parking Garages, Manufacturing Facilities, Government Facilities, Auto Dealerships, Warehouses, Airports, Retail Shops, Mall Shops |
| Hood | 24-gauge, Powder coat finish, Stainless steel with #4 brush finish, Anodized or mill aluminum finish |
| Guides | 3 structural steel angles with UHMW wear strips |

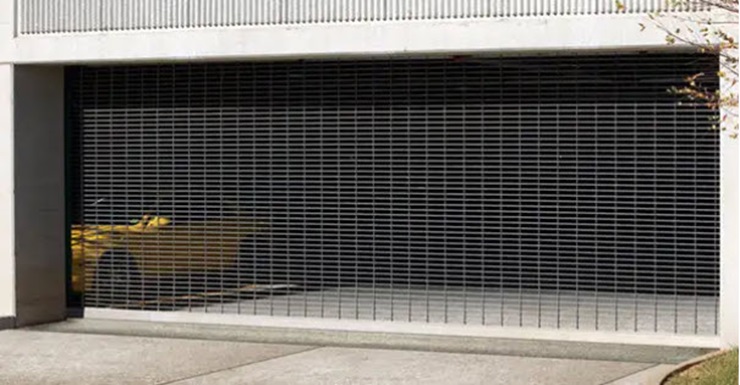

| Door Type | Grilles |
| Door Roll | Directly driven, springless roll with integral shafts; Self-aligning greaseable sealed bearings; Door does not require counterbalance device |
| Bottom Bar | Tubular extruded aluminum with mill finish, Aluminum double angle |
